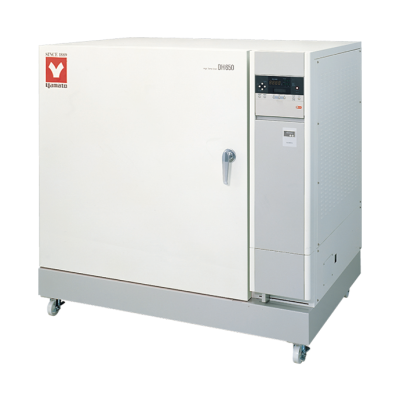

Yamato DH650 High Temperature Laboratory Oven

Product Specifications

BRAND	Yamato
MODEL	DH650

DESCRIPTION

The Yamato DH-650 is a high-temperature, programmable fine oven with an exhaust damper. The maximum working temperature is 500 °C. It's equipped with a variety of operation functions, such as an easy-to-use program operation function, power consumption, power charge display, and history storage. The operation function includes fixed temperature, program, quick auto stop, auto stop, and auto start operations. It's equipped with a four-fold overheating prevention device (automatic overheating, heater chamber overheating, tank overheating, and temperature fuse) to ensure complete safety.

ADDITIONAL INFORMATION

System Forced convection circulation (with exhaust damper)
Operating temp. range: Room temp. +10~500°C
Temp. control precision*¹: ± 0.3°C (at 360°C)
Temp. distribution precision*¹: ± 3°C (at 360°C)
Max. temp. reaching time*¹: ~60 min.
Temp. control system: PID control / SSR control with a microcomputer
Temp. setting / display method: Digital setting / digital display
Damper control: Manual circulation / ventilation operation
Over current ELB, overheat preventive device (in the bath, heater chamber),
Self-diagnostic function (temperature sensor error, heater disconnection, SSR short-circuit)
Automatic overheat prevention (internal controller)
Temperature fuse, door switch
Additional functions: Key lock function, calibration offset function, external alarm output, temperature output, time-up output
Sensor: K thermocouple
Heater control: SSR-controlled
Heat insulator: Ceramic fiber, rock wool, heat insulating block
Heater: Wire heater: 200V 1.3 kW × 6
Fan motor: 20W (capacitor)
Exhaust port: ø80mm (rear)
Internal dimensions: 600×600×600 mm (W×D×H)
External dimensions*²: 1350×950×1300 mm (W×D×H)
Internal capacity: 216L
Shelf max. load: ~30kg / pc.
Shelf support qty. / pitch: 9 steps / 60mm
Power source: 50/60 HzAC220V 20.5A 3 phase
Weight: ~250 kg
Included accessories: Shelf and brackets
Shelf / bracket: 3 pcs / 6 pcs
