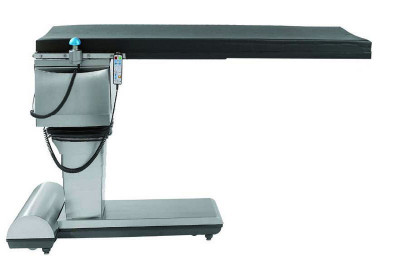

Stille ImagiQ 508-170-00 120 220 Ultrasound Table

Product Specifications

BRAND	Stille
MODEL	508-170-00

DESCRIPTION

Maintains Your Focus
The patented “isocentric roll” helps maintain image focus even while in the full lateral roll, minimizing patient and C-arm repositioning

Perfect View
The fistula arm board provides an unobstructed image during fistula arm procedures.

Work Environment
The catheter tray follows every move of the table, creating an optimal work surface for guide wires, instruments and other ancillary tools.

Total Control
Ergonomically designed pan-handle for instant start and stop gives you position with precision and complete control of speed and direction with manual adjustment of the table top.

Intuitive Control
With one single device, assisting personnel are able to control and adjust all motorized movements and functions of the table, without any delays.

Position With Precision
The excellent and smooth manually adjusted True Free Float, enables you to gain full control of the speed and the direction of the motion. This helps you to position your patient with precision when performing interventional endovascular procedures. With a wide variety of optional accessories, imagiQ is the perfect solution to help you and your team perform procedures as efficiently as possible in any OR setting

Crystal Clear Imaging
The ultra-thin carbon fiber table top with 360° translucency provides for crystal-clear imaging and helps you minimize the radiation dose.
Flexibility Fixed and detachable surgical rail sections provide expanded flexibility

Anesthesia Friendly
The combination of a fully translucent and adjustable headrest enables convenient intubation with great imaging capabilities.

SPECIFICATIONS
Weight & Forces

Overall weight 606 lbs 275 kg Patient load capacity 440 lbs 200 kg
Dimensions: Table top length 77”/87” 1950/2220 mm (with/without detachable head section) Table top width 22” 550 mm (excluding accessory rail) Imaging area length 72”/60” 1800/1530 (with/without detachable head section) Imaging area width 22” 550 mm

Imaging:

Imaging Length 60” 1530 mm
Imaging Length (with headrest) 71” 1800 mm

Movements:

Lateral travel 10” 240 mm
Longitudinal travel 27” 690 mm
Trendelenburg travel +/-25 degrees
Lowest table height 28” 710 mm (w/out mattress)
Highest table height 43” 1090 mm (w/out mattress)
Lateral roll +/-15 degrees (combined lateral roll and pan capable)

General:

Table top composition ultra thin carbon fiber
Table top radiolucency 1.1 mm Al equivalent
Table pad composition 3” (76 mm) slow recovery foam
Meets EMS (Electromagnetic Compatibility) for IEC 60601-1-2
