Precision Rated Optics OFS-960S Fusion Splicer from $650.00/mo

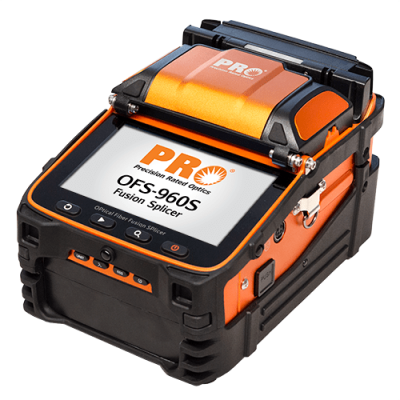

Precision Rated Optics OFS-960S Core Alignment Fusion Splicer

Precision Rated Optics OFS-960S Core Alignment Fusion Splicer
Product Specifications
BRAND  Precision Rated Optics
MODEL  OFS-960S
DESCRIPTION
The Precision Rated Optics OFS-960S Core Alignment Fusion Splicer uses the latest core alignment technology with autofocus and six motors. It is a new generation of fiber fusion splicers. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring, and other fiber cable splicing projects. The machine uses an industrial quad-core CPU, fast response, and is currently one of the fastest fiber splicing machines in the market. With 5-inch 800X480 high-resolution screen, the operation is simple and intuitive. Up to 300 times focus magnification makes it very easy to observe the fiber. The PRO OFS-960S fusion splicer boasts 5 seconds splice time and 15 second heating time, increasing work efficiency by 50% compared to ordinary splicing machines.
ADDITIONAL INFORMATION
  • Applicable fiber type: SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.657) / NZDS(ITU-T G.655)
  • Fiber count: Single
  • Focus mode: Auto Focus
  • Applicable fiber cables: 0.25mm- 3.0mm/ Indoor Cable
  • Applicable fiber diameter: Cladding diameter: 80-150μm; Coating diameter: 100-1000μm
  • Fiber Holders: Multifunction holders, Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable
  • Splice loss: SM : 0.025dB, MM : 0.01dB, DS : 0.04dB, NZDS : 0.04dB
  • Splice mode: Normal/high precision splicing
  • Internal splice data storage: Synchronize with phone for unlimited cloud storage
  • Splicing time: 5s
  • Heat oven: 40mm, 60mm
  • Typical heating time: 15s
  • Heat mode: Various heat modes available
  • Displaying method: Two cameras and 5.0-inch color LCD monitor
  • Magnification: 300x single X or Y view, or 150x both X and Y view
  • Tensile test: 2N
  • Standard AC power voltage: AC 100-240V, 50-60Hz
  • Standard DC power voltage: DC 13.5V/4.8A
  • Screen: 5.1 inch TFT color display
  • Size (HxWxD): 6.57” x 5.62” x 6.41”in / 6.17lb (167 x 143 x 163mm / 2.8kg)
  • Operating condition: 0~5000m above sea level, 0~95% relative humidity, 5~122°F (-15~50°C), 15m/s max wind speed
  • Storage condition: 0~95% relative humidity, -40~176°F (-40~80°C)
  • Battery: 7800 mA high-capacity lithium battery
  • Charging Time: ≥ 3.5 hours
  • Continuous Splicing and Heating: 240 times
  • Power Meter – Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
  • Power Meter – Measuring Range: -70 ~ +6dB; Absolute Error: <0.3db(-50dbm ~ +3dbm Range)
  • Visual Fault Locator: Power 15mW, 2Hz, Flashing or Constant Light Modes
  • Software upgrade: Mobile app, turn on Bluetooth sync to machine
RENTAL OPTIONS

Rent for short-term needs, finance the purchase by leasing, or just purchase outright.

Offered by Joe at Supplier #25151 in Quakertown, PA
  Rental Rates  Message Joe
WANT MORE OPTIONS?

Get multiple quotes to rent, finance or buy from
34 Suppliers of telecom & fiber optic equipment

This is going to be easy!

When do you need your rental? We will use the best rate for your timeframe.

Searching
RENTAL RATES
$650.00/mo
$350.00/wk
$100.00/day
*Rental rate calculations based on 7 day week and 30 day month. Rental starts when you receive equipment and ends when you ship it back. You will not be charged for time in transit. Review rental terms and conditions.
