DESCRIPTION

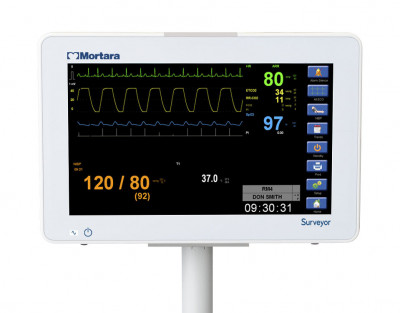

Mortara Surveyor 12 Patient Monitor, 12 Inch Color, Touch Screen Interface, 3 lead ECG, Dual Temperature, NIBP, Surveyor Sp02, C02 and Recorder.
This modern and flexible patient monitoring system is an innovative patient monitoring platform offering a simple and intuitive touchscreen user interface, plus exceptional visibility. This portable solution Surveyor S12 with high resolution 12" touchscreen display, extensive battery runtime, and integrated handle, is an ideal portable monitoring solution. The Surveyor S12 includes an integral thermal recorder.
SURVEYOR S12 Patient Monitoring System
Dimensions 315 W x 203 H x 125mm D (12.4W x 8H x 4.9"DW)
Weight3 kg (6.6 lbs) standard configuration; includes battery and built-in recorder
Display TypeHigh - definition, antiglare 16:9 color TFT LCD with LED backlight and resistive touch panel controls
Display Size 11.6" diagonal; 2156mm x 144mm active area
Display Resolution1366 x 768 pixels
Recorder type Thermal; 2-trace; built-in
Recorder speed/resolution25mm/s, 200 (v) x 400 (h) dpi
Print width/paper width48mm/50mm
Print Formats strip chart printing of 2 user-selectable waveforms (ECG, IBP, Sp02, C02)
ECG
ECG Modes Adult/pediatric
Simultaneous leads available3-lead patient cable: I,II, III
5-lead patient cable: I, II, III, aVR, aVL, aVF, and V
AM12: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
Interpretation Available with AM12acquisition module only
ECG gain 2.5, 5, 10 or 20 mm/mV
Beat Recognition Normal, ventricular, paced
HR measurement range15-300 bpm
Pacer display/analysis User selectable
Arrhythmia detection VFib, Asystole, VTach, PVC Run, VRhythm, Couplet, Bigeminy, Sustained Tachycardia, Sustained Bradycardia,
Irregular, PVC/m too high, Pause, Pacer Non-Capture
ST Segments Analysis Sensing leads: any ECG lead available based on lead set used
Respiration
Method 1 Capnography
Range: 0 to 150 bpm
Method 2 Impedance Pneumography
Via 3 - or 5-lead patient cable
Sensing lead 2
Range: 2 to 120 bpm
Feature
Non-Invasive Blood Pressure
Measurement Method Oscillometric
Input connector single lumen hose (quick-disconnect fitting)
NIBP Measurement range Systolic: 30-250 mmHg
Mean: 20-230 mmHg
Diastolic: 10- 210 mmHg
Measurement ModesManual or interval (auto) measurement
Interval Measurement Settings OFF, 3, 5, 10, 15, 30, 60 minutes
Pulse Rate Measurement Range 30 - 240 bpm
Invasive Pressure
Measurement Range -50 to 300 mmHg
Pulse Rate measurement Range 30 - 250 bpm
Pulse Oximetry
Measurement Method Absorption - Spectrophotometric (dual wavelength)
TechnologyNellcor Oximax or Mortara Surveyor
Measurement Range Sp02: 30 - 100 %, calibrated range 70-100%
Pulse Rate measurement range PR with Surveyor Sp02: 30 2- 240 bpm
PR with Nellcor Sp02: 25- 250 bpm
Temperature
Input connector 2-pin connector
Temp Measurement range T1 & T2: 5.0 to 50.00 C (41.0 to 122.0F)
Probe Compatibility YSI 400-series probes
C02
Measurement Method Side - stream (Non-dispersive IR absorption)
TechnologyCovidien Microstream
Input ConnectorFilterLine
Measurement Range etC02: + FiC02: 0 to 150 mmHg
Resp: 0 to 150 bpm
Trends
Trend data Up to 72 hours of parameter data
Trend Display Intervals 1 min, 5 min, 15 min, 1 hr, 4 hrs
Power Requirements
Power Source AC power/battery
AC Power Source External AC power adapter 100-240 VAC;
1.2 A max; 50-60 Hz
Battery Runtime 3 hrs
Battery Recharge Time Powered off: 5 hrs maximum
Powered on: 7 hrs maximum
