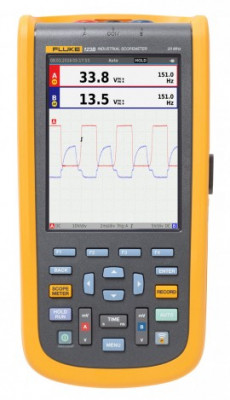

The Fluke 123BNA 2-Channel Industrial ScopeMeter Hand-Held Oscilloscope, 20 MHz, 40 MS/s is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It is a truly integrated test tool with oscilloscope, multimeter and high-speed recorder in one, easy-to-use instrument. The 123B/NA also integrates with Fluke Connect mobile app and FlukeView for ScopeMeter software to enable further collaboration, data analysis and archiving of critical test information.
The Fluke 123B/NA includes innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect and View trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSet technology, all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.
Product Features:
Bandwidth: 20 MHz
Dual-input digital oscilloscope and multimeter
Two, 5,000-count True-RMS digital multimeters
Connect-and-View trigger simplicity for hands-off operation
IntellaSet technology automatically and intelligently adjusts numerical readout based on measured signal
Dual-input waveform and meter reading recorder for trending data over extended periods
Recorder Event Detect captures elusive intermittent signals on repetitive waveforms, up to 10 KHz
Shielded test leads for oscilloscope, resistance and continuity measurements
Resistance, continuity, diode and capacitance meter measurements
Power measurements: W, VA, VAR, PF, DPF, Hz
Voltage, current and power harmonics
Check industrial networks with BusHealth physical layer tests against defined reference levels
Save or recall data and instrument setups
Store instrument setups defined by test sequences for routine maintenance, or for oft used test procedures
External, optically isolated USB interface to transfer, archive and analyze scope or meter data
FlukeView ScopeMeter Software for Windows
Rugged design to withstand 3g vibration, 30g shock, and rated IP51 according to EN/IEC60529
Safety rated for CAT IV 600V
Li-Ion rechargeable battery for seven-hour operation (with four-hour charge time)
