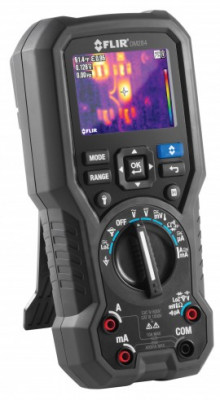

All-in-one TRMS Digital Multimeter and Thermal Imager that can pinpoint where an electrical problem is to speed up the troubleshooting process. With a 160 x 120 FLIR Thermal Imager and the Infrared Guided Measurement (IGM™) technology, it enables you to scan panels, connectors, and wires from a safe distance and verify your findings with advanced contact measurement features to help solve the most complex electrical issues.
Pinpoint problems quickly and safely with Infrared Guided Measurement IGM™
Find more work by visually identifying electrical issues
- See exactly where to measure with the 160 x 120 resolution FLIR thermal imager
- All-in-one tool – carry just one device and always have access to thermal imaging
- Scan a panel or cabinet for hazards using IGM without direct contact
Troubleshoot challenging problems with ease
Verify electrical issues with trusted readings every time, even with complex measurements
- 18-function DMM including VFD mode, True RMS, LoZ, and NCV
- Thermocouple input
- View thermal and electrical thermocouple measurements simultaneously
Design and functionality vital to professionals
An all-in-one tool that's built to last
- Built-in work lights and a laser pointer help you access difficult locations with lighting issues and pinpoint the location of the problem in the thermal image
- Simple user interface and various thermal color palettes to choose from: Iron, Rainbow, Greyscale
- Durable and drop tested with 10-year warranty
Specifications:
Thermal Imager
Image Resolution: 19,200 pixels (160 x 120)
Sensitivity: ≤150 mK
Emissivity: 4 Presets with Custom Adjustment
Accuracy: 3°C or 3.5%
Range14 to 302°F (-10 to 150°C)
FOV: 46° x 35°
Laser Pointer: Yes
Focus: Fixed
Palette: Iron, Rainbow, Greyscale
Level & Span: Auto
AC/DC Volts
Range: 1000V
Accuracy: 1%/0.09%
AC/DC mVolt
Range: 600.0mV
Accuracy: 1%/0.5%
AC/DC Amps
Range: 10.00A
Accuracy: ±1.5%
Resistance
Range: 50 MΩ
Accuracy: 0.90%
Flex Clamp
Range: 3000A AC (Optional TA72/74)
Accuracy: ±3.0% + 5 digits
Frequency
Range: 99.99kHz
Accuracy: 0.10%
Thermocouple
Range: Type K -40 to 752°F (-40 to 400°C)
Accuracy: ±1.0% + 5.4°F (DMM) ±1.0% + 9°F (IGM)
