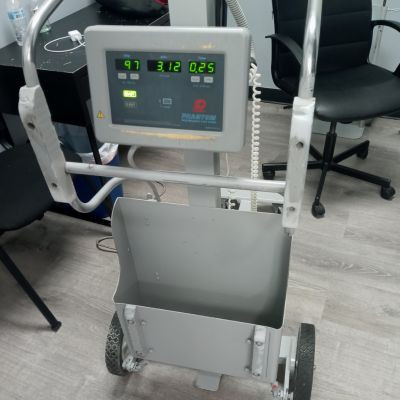

Dynrad HF Phantom Portable X-RAY

Product Specifications

BRAND	Dynarad
MODEL	Phantom Portable X-RAY

DESCRIPTION

Dynarad Phantom Portable X-Ray, Good Condition and expertly calibrated. Good Tires, Castor Wheels, Power Cord and Brakes. An agile and flexible. It is lightweight and moves quickly to make optimal positioning easier, and minimize disturbance for the patient. For cost effective patient outcomes, fast deployment, and state-of-the-art functionality, the portable line is simply the best in the field.

ADDITIONAL INFORMATION

Electrical Specifications

Generator Type: High frequency inverter, 1.25 kilowatt output.
kVp Range: 50-100 kVp continuously adjustable, with 1 kVp resolution.
mA Range: Fixed, 12.5 mA, constant independent of kVp or time settings.
Exposure Time: 0.01 to 4.0 seconds in 96 increments.
Indicators: Ready, x-ray on, digital display of kVp, mAs and time.
Exposure Switch: Detachable hand switch, two position, prep and expose.
X-Ray Tube: Stationary anode, 100 kVp.
Filtration: 2.7 mm of aluminum at 100 kVp(min.).
Target Material: Tungsten
Anode Capacity: 25,000 heat storage capacity.
Focal Spot: 1.0 mm (NEMA). Beam Angle: 15° C
Collimator: Certified manual
Lamp Source: 30 second timer
Tape Measure: For SID distance
Inclinometer: For angle measurement
Electrical Requirements: 115 VAC, 50 Hz. or 60 Hz., or 230 VAC, 50 Hz. or 60 Hz.

Mechanical Specifications

Maximum Focal Spot to Floor: 78 ˝ (198 cm)
Minimum Focal spot to Floor: 15˝ (38 cm)
Horizontal Extension of Focal Spot: 21˝ (53 cm)
Rotation About Horizontal Axis: 360°
Rotation About Tube Axis: 270°

System Dimensions *with front leg folded*

Horizontal storage position 25˝W, 52˝L, 27˝H (64 x 132 x 69 cm).
Vertical storage position 52˝H, 25˝W, 27˝L (132 x 64 x 69 cm).

System Weight

Total System Net Weight 95 lbs. (43.2 kg)
