Criticare 8100E Patient Monitor from $83.41/mo

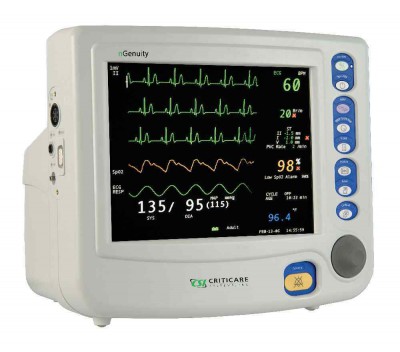

Criticare nGenuity 8100E Patient Monitor

Criticare nGenuity 8100E Patient Monitor
Product Specifications
BRAND  Criticare
MODEL  8100E
DESCRIPTION
Criticare nGenuity 8100E Patient Monitor
The flexible, easy-to-use nGenuity patient monitor is the perfect solution for conscious sedation or post-procedure recovery monitoring. The nGenuity patient monitor provides straightforward operation with a user-configurable display, enabling clinicians to quickly access the results they need. It comes with a wide variety of parameters, including advanced capabilities like ECG analysis, Capnography (ETCO) and mini trend reporting.
The bright color display has large numeric readings, making it easy to read from across the room. Straightforward menus and dedicated function keys are easy to learn. It's compatible with EMR/HIS systems and Criticare’s VitalView central station.
Features and Specifications
  • Standard features: ECG, ComfortCuff® NIBP, DOX® SpO2, Heart Rate, Temperature, Respiration and Nurse Call interface connection.
  • Mini-Trends display of condensed tabular vital signs data to show recent monitoring activity.
  • Compatible with popular Electronic Medical Records (EMR) systems for both large and small offices.
  • Easy to read 10.4 inch TFT display.
  • Easy to learn, easy to use interface with simplified menus and dedicated function keys.
  • Mounts quickly to walls and rollstands.
  • Optional features: End-tidal and inspired CO2 and integrated printer.
  • Optional CO2 monitoring incorporates CSI’s patented water trap design with full occlusion clearing. (See Item 8100E1)
  • ECG
    • Number of Leads: 3 or 5 Leads
    • User Selectable View: I, II, III, aVR, aVL, aVF, V (5-Lead), I, II, or III (3-Lead)
    • Gain Selection: 0.5x, 1x, 2x, 4x
    • Diagnostic Frequency Response: 0.05 to 100 Hz (-3dB)
    • Monitor Frequency Response: 0.5 to 40 Hz (-3dB)
    • Electrosurgery Protection: Yes
    • Defibrillator Protection: Yes
    • Pacer Detection/Rejection: Yes
  • NIBP
    • Technique: Oscillometric measure upon inflation
    • Inflation Range: Adult/Pediatric - 0 to 300 mmHg, Neonate - 0 to 150 mmHg
    • Measurement Cycle: < 40 seconds typical (Standard Adult Cuff)
    • Automatic Measurement: 2, 3, 5, 10, 15, 30 minutes or 1, 2, 4 hour intervals
    • STAT Mode: 5 minutes of consecutive readings
    • Maximum Cuff Pressure: Adult/Pediatric - 300 mmHg, Neonate - 150 mmHg
    • Measurement Resolution: 1 mmHg
    • Transducer Accuracy: ±2 mmHg or ±2% of reading, whichever is greater over full range
    • Clinical Accuracy: Complies with AAMI
  • Pulse Oximetry
    • Range: 1% to 99%
    • Resolution: 1%
    • Accuracy: 70% to 99% - ±2%, 50% to 69% range - ±3%, < 50% - unspecified
    • Automatic Measurement: 2, 3, 5, 10, 15, 30 minutes or 1, 2, 4 hour intervals
    • Method: Dual Wavelength LED
  • Heart Rate (Pulse)
    • Source: User selectable - Smart, ECG, Pleth or NIBP
    • Range: 20 to 300 bpm (ECG, Pleth), 30 to 240 bpm (NIBP)
    • Accuracy: ±1 bpm or ±1% (ECG) whichever is greater
  • Temperature
    • Channels: 1
    • Probe: YSI-400 and YSI-700 Series
    • Range: 68° to 113°F (20° to 45°C) - ±0.1°C
    • Display Resolution: 0.1°C
  • Respiration
    • Rate: 6 to 150 bpm (ECG), 2 to 120 (CO2)
    • Resolution: 1 Breath per Minute
    • Source: User selectable - Smart, CO2 or ECG-TTI
  • Alarms
    • Indication: Audible, Visual
    • Silence: Yes, 2 minutes or permanent
  • Trends
    • Memory: 24 hours at 30 second intervals with a NIBP reading every three minutes
    • Display: Tabular, Graphical
  • Interface and Display
    • Keys: 9, Membrane Activated
    • Rotary Knob: Push and rotate, 24 steps/turn
    • Screen: 10.4 inch active color TFT
    • Display Resolution: 640 x 480
    • Waveforms: 6, maximum
    • Waveform Types: ECG Leads I, II, III, aVR, AVL, AVF, V; Respiration, CO2, Pleth, ST Histograms
    • Sweep Speed: 6.25, 12.5, 25, or 50 mm/sec
    • Languages: English, Czech, French, German, Italian, Polish, Portuguese, Russian, Spanish, and Turkish
  • Optional Printer
    • Type: Thermal line printer
    • Paper Speed: 12.5, 25 or 50 mm/sec
  • System Outputs
    • Nurse Call: Contact switch, 3.5 mm phone jack, 14 mm length
    • COM Port: RS232 compatible, DB9 (Com 1)
    • Defib/Sync: BNC connector
    • Video Port: High density D-sub 15-pin serial VGA compatible
  • Physical Properties
    • Weight: 14 lbs (6.4 kg)
    • Size: 11 in (H) x 13 in (W) x 10.3 (D), 28 cm (H) x 33 cm (W) x 26.2 cm (D)
  • Power Requirements
    • Voltage: 100 to 240 VAC, 50/60 Hz
    • Power Consumption: 35 Watts, typical
    • Battery: 1 sealed lead acid
    • Battery Life: 3.0 hours, typical (2.5 hours w/CO2)
    • Recharge Time: 4.5 hours, typical
  • Environmental Consideration
    • Operating Temperature: 59° to 95°F (15° to 35°C)
    • Storage Temperature: 23° to 122°F (-5° to 50°C)
    • Operating Humidity: 15% to 90%, noncondensing
  • Classification
    • Medical Device: Class II Equipment (IIb EU)
    • Electrical Protection: Class I Equipment
    • Degree of Protection: Type CF, Defibrillator-proof
    • Protection Against Ingress: IPX1
  • Office Management Software Compatibility
    • Kodak WINOMS CS by Carestream Dental LLC
    • TiME for OMS by Decision Base, Inc.
    • U.S. HealthRecord powered by TeamLINKS, Inc.
    • Oral Surgery-Exec by DSN Practice Management Software
    • OMSVision by HenrySchein Practice Software
    • Windent by Carestream Dental LLC
    • MD-REPORTS
    • ProVation Medical
    • gMed
    • Endosoft
