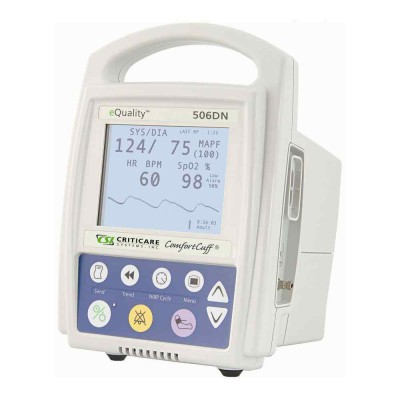

Criticare eQuality 506DN Vital Signs Patient Monitor

Product Specifications

BRAND	Criticare
MODEL	506DN

DESCRIPTION

Criticare eQuality 506DN Vital Signs Patient Monitor
An affordable vital signs monitor with features for both spot-checks and continuous monitoring. With a lightweight design, the 506DN is designed for ease of use and mobility and attaches quickly to a roll stand. The 506DN’s compact design allows ready adaptation to hospital, clinic and transport requirements.
Features and Specifications>/strong>

ComfortCuff® NIBP measures on-inflation for faster, more comfortable readings.
DOX® pulse oximetry with waveform display.
Audible and visual alarms are adjustable for use in continuous monitoring.
Large responsive keys for fast spot-checks with easy to clean membrane keypad.
On-screen menu selection for ease of setup and use.
Accommodates all patient types from adult to neonate.
Nurse call and connectivity to network systems.
Trend memory for blood pressure measurements with heart rate and SpO2 readings.
Rechargeable battery with direct AC power.
Optional integrated Bluetooth®.

NIBP
- Technique: Oscillometric measure upon inflation
- Inflation Range: Adult - 30 to 300 mmHg, Pediatric - 30 to 150 mmHg, Neonate - 20 to 150 mmHg
- Measurement Cycle: < 40 seconds typical (Standard Adult Cuff)
- Automatic Measurement: 1, 2, 3, 5, 10, 15, 30, 45 minutes or 1, 2, 4 hour and STAT intervals
- STAT Mode: 5 minutes of consecutive readings
- Transducer Accuracy: ±2 mmHg or ±2% of reading, whichever is greater over full range
- Clinical Accuracy: Complies with AAMI SP-10:2002
Pulse Oximetry
- Range: 1% to 99%
- Resolution: 1%
- Accuracy: 70% to 99% - ±2%, 50% to 69% range - ±3%, < 50% - unspecified
- Audio: Tone with each detected pulse. Pitch varies with saturation
- Method: Dual Wavelength LED
Heart Rate (Pulse)
- Range: 30 to 240 bpm
- Accuracy: ±1 bpm or ±1% of reading, whichever is greater (unspecified for < 30 or > 240 bpm)
- Resolution: 1 bpm
- Pulse Volume: 10 Levels or OFF
Alarms
- Indication: Audible, Visual
- Volume: 10 Levels or OFF
- Silence: Yes, 2 minutes or permanent
Trends
- Memory: Last 250 NIBP Measurements
- Parameters: Systolic, Diastolic, MAP, pulse rate (records SpO2, pulse rate and SpO2 saturation if oximetry is monitored)
Display
- Type: Monochrome
- Parameters: NIBP, SpO2, Pulse Rate, Plethsymograph
- Status: Alarm Silence, Sensor, Low Battery, External Power, Patient Size
- Languages: English, Danish, Dutch, French, German, Portuguese, Spanish
System Outputs
- Nurse Call: Contact switch, 3.5 mm phone jack
- COM Port: Serial, RS232 Compatible, Bluetooth
- Settings: External Printer or CUSP
Physical Properties
- Weight: 4.5 lbs (2.0 kg)
- Size: 8.0 in (H) x 5.5 in (W) x 5.75 (D), 20.3 cm (H) x 14 cm (W) x 14.6 cm (D)
Power Requirements
- Voltage: 100 to 240 VAC, 50/60 Hz
- Battery: 1 sealed lead acid
- Battery Life: 8.0 hours, typical
- Recharge Time: 6.0 hours, typical
Environmental Consideration
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: -4° to 149°F (-20° to 65°C)
- Operating Humidity: 5% to 95%, noncondensing
Classification
- Electrical Protection: Class I Equipment
- Degree of Protection: Type CF, Defibrillator Proof
- Protection Against Ingress: IPX1, Drip Proof Equipment
Office Management Software Compatibility
- Kodak WINOMS CS by Carestream Dental LLC
- TiME for OMS by Decision Base, Inc.
- U.S. HealthRecord powered by TeamLINKS, Inc.
- Oral Surgery-Exec by DSN Practice Management Software
- OMSVision by HenrySchein Practice Software
- Windent by Carestream Dental LLC
- MD-REPORTS
- ProVation Medical
- gMed
- Endosoft
