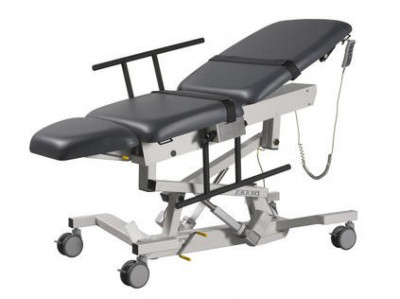

THE REDESIGNED ULTRA PRO ULTRASOUND TABLE IS A DEDICATED TABLE FOR ALL GENERAL ULTRASOUND PROCEDURES INCLUDING OB/GYN.
Ergonomics are enhanced to provide greater patient and sonographer comfort, with an assortment of table options to suit your department needs. The table is so accommodating, it reduces the total amount of time required to achieve a quality image.
New side rails eliminate barriers between sonographer and patient, allowing correct scanning posture to help prevent musculoskeletal injury. Rails are flush to the table, enabling closer access to the patient, without sonographer contortion. When not in use, rails fold beneath the table, eliminating obstruction.
Enhanced central floor locking system offers easier access from around the table, and motorized Fowler back accommodates natural body extension and sitting position without shift. A new antimicrobial vinyl mattress cover ensures patient comfort, while safeguarding against infection..
Main Features:
- New ergonomic design for enhanced patient and sonographer comfort
- Drop-down contoured leg section
- Redesigned, optional side rails, flush to table for unencumbered patient access
- Allows for seated or standing work positions
- 500-lb patient capacity, suitable for bariatric patients
- Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
- Motorized height, Fowler positioning, Trendelenburg and auto-level adjustment
- Enhanced central floor locking system
- Durable hand controller activates table positions
- New soft-touch antimicrobial vinyl mattress cover
- Optional retractable stirrups with enhanced contouring and extra-long extension for larger patients
- Optional scanning arm board, adjustable from 0 to 130 degrees
- Optional headrest extension, drops down 15 degrees to allow for carotid studies
- Warranty: Two years
Suitable Procedures
- Abdomen
- Aorta
- Endovaginal**
- Hysterosonography
- Testicular
- Musculoskeletal
- DVT/Lower Extremity Venous
- Upper Extremity Venous
- Renal Transplant
- SMA
- Renal
- Pelvis
- OB
- Thyroid
- Breast
- Carotid
- Lower Extremity Arterial
- Renal Artery
- Abdominal Doppler
- Transesophogeal Echo
*Requires optional vascular arm board.
**Requires optional stirrups.
Specifications
- Dimensions: 70" l x 30" w (177.8 x 76.2 cm); 35" w (88.9 cm) with optional side rails
- Drop-Down Leg Section: 12.6" l (32 cm)
- Height Adjustable: 23" to 39" (58.4 to 99 cm)
- Tabletop: Three primary sections: torso section with Fowler positioning, center section remains fixed and leg section drops down to 40° and 80° for stirrup access
fixed and leg section drops down to 40° and 80° for stirrup access
- Mattress: Torso section 2" (5 cm) thick, center and leg sections 3" (8 cm) thick; foam rubber pad covered with seamless, durable Naugahyde®
- Upholstery Color: Graphite
- Motions:
- Height Adjustable: 23" to 39" (58.4 to 99 cm)
- Trendelenburg: 0° to ±15°
- Fowler Back: 0° to 80° infinitely adjustable
- Controls:
- Hand Control: Activates height, Trendelenburg motions, and fowler positioning
- Foot Control (optional): Activates height, Trendelenburg motions and fowler positioning
- Wheels: 5" (12.7 cm) Individual locking swivel casters; central floor locking system
- Patient Restraints: Two body straps
- Finish: Powder coat
- Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
- Weight: 335 lb (152 kg)
- Power: 115 VAC or 230 VAC
- Warranty: Two-year
- Certifications: ETL and cETL Listed to UL60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards.
