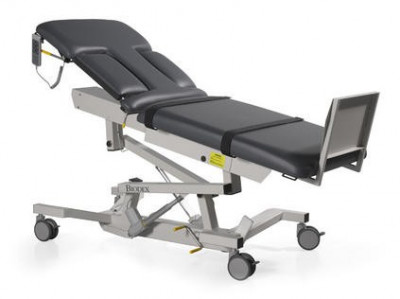

BIODEX ECHO/VASC PRO VASCULAR ULTRASOUND TABLE. 058-707 - Vascular U/S Echo/Vasc Pro Table 230V

Product Specifications

BRAND	Biodex
MODEL	058-707

DESCRIPTION

THE REDESIGNED ECHO-VASC PRO VASCULAR TABLE IS THE LOGICAL CHOICE WHEN PERFORMING VASCULAR SCANNING AND ECHOCARDIOGRAPHY TO VIEW ARTERIES, VEINS AND HEART CHAMBERS.
The table design improves images by providing dramatic 30 degree reverse Trendelenburg positioning. Enhanced foot support provides comfortable access to calves without crouching. Body straps stabilize the patient and ensure safety throughout the entire procedure. The new cardiac cutout can be released from either side of the table, with nothing protruding for maximum sonographer comfort. Open access is provided to the patient’s left thorax area for an unobstructed apical approach.
The new Articulating Scanning Arm Board is adjustable from 0 to 130 degrees and locks every 10 degrees. Redesigned side rails are flush to the table, enabling closer access to the patient, without sonographer contortion. Fowler positioning accommodates natural body extension and sitting position without slide or shift, ensuring patient comfort with a redesigned soft antimicrobial vinyl cover.
Features:

Improved ergonomic design helps prevent musculoskeletal injuries – comfortable shoulder, arm and hand positions when scanning
Allows seated or standing work positions
Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
Extra-wide top with 500-lb patient capacity, suitable for bariatric patients. Weight tested to four times the patient load rating
New side rails are flush to table for unencumbered patient access.
Motorized height, Fowler positioning, Trendelenburg motions and auto-level adjustment
Reverse Trendelenburg to 30 degrees
Fowler positioning, 0 – 80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
New improved cardiac drop-down cushion; release and return from either side of table
Durable hand controller
New softer feel antimicrobial vinyl mattress cover
Improved foot support with comfortable access to calves without crouching
Optional Articulating Scanning Arm Board, adjustable from 0 to 130 degrees

Suitable Procedures:

Echocardiography
Stress Echo
Transesophogeal Echo
Lower Extremity
Venous Ablation
Venous Insufficiency
Venous Reflux
Venous Mapping and Doppler (DVT)
Arterial Scan/Doppler (PAD)
Upper Extremity
Arterial*
Testicular
Musculoskeletal
Carotid
Carotid Duplex
Transcranial
Abdomen
Aorta
Thyroid
Breast
Renal
Renal Transplant
Renal Artery
Venous Access Placement and Assessment*
SMA

*Requires optional vascular arm board.
Specifications:

Dimensions: 73" l x 30" w (185.4 x 76.2 cm); 35" w (88.9 cm) with optional side rails
Height Adjustable: 23" to 39" (58.4 to 99 cm)
Tabletop: Two primary sections: torso section features sonographer and patient cutouts with Fowler positioning, and lower body section remains fixed
- Drop-Down Cardiac Scanning Cushion: release from either side of the table
- Adjustable Sonographer Cutout: drops down or folds up for maximum access to the patient
Mattress: Torso section 2" (5 cm) thick, lower body section 3" (8 cm) thick; foam rubber pad covered with seamless, durable Naugahyde®
Upholstery Color: Graphite
Motions:
- Height Adjustable: 23" to 39" (58.4 to 99 cm)
- Trendelenburg: 0° to 15°
- Reverse Trendelenburg: 0° to 30°
- Fowler Back: 0° to 80° infinitely adjustable
Controls:
- Hand Control: Activates height, Trendelenburg motions, Fowler positioning and auto level motions
- Foot Control (optional): Activates height, Trendelenburg motions, and Fowler positioning
Wheels: 5" (12.7 cm) Individual locking swivel casters; central floor locking system
Patient Restraints: Two body straps
Finish: Powder coat
Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
Weight: 335 lb (152 kg)
Power: 115 VAC or 230 VAC
Warranty: Two years

Certifications:
ETL and cETL
Listed to UL 60601-1 and CAN/CSA C22.2 No. 601.1-M90 and EN 60601-1 standards.
