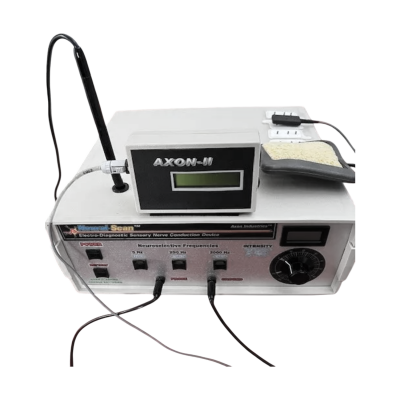

Axon-II pf-NCS NCV Testing System

Product Specifications

BRAND	Axon II
MODEL	pf-NCS

DESCRIPTION

The AXON-II pf-NCS (pain fiber Nerve Conduction Study) with Potentiometer is a non-invasive diagnostic technology used to assess and locate the origin of pain in patients.
While the AXON-II pf-NCS with Potentiometer shows promise in pain diagnostics, it's important to note that some medical authorities, such as the American Academy of Neurology, caution that quantitative sensory testing results should not be the sole criteria for diagnosing pathology.

ADDITIONAL INFORMATION

Non-invasive testing: The procedure uses Q-tips rather than needles, improving patient comfort and compliance.
The system can determine the origin of pain with a high degree of precision.
It measures the voltage required to initiate action potentials in nerve membranes, focusing on voltage-gated sodium and potassium channels.
Detecting and locating the source of pain
Identifying pathological nerves
Diagnosing various neuropathies, including peripheral, metabolic, toxic, acquired, hereditary, compression, and traumatic neuropathies.
Enables faster and more accurate diagnosis, leading to more effective treatment plans.
May reduce the need for multiple tests and trials of expensive medications.
Medical documentation:
Provides objective evidence of nerve pathology for chronic pain management.
Requires two hands to operate
Total weight: 30-50 lbs (depending on cart, computer and printer used)
AXON-II unit alone weighs 12 lbs
FDA Class II medical device (classified as safe and effective)
Uses a potentiometer to measure voltage changes in nerve fibers
Maximum output: 10.20 mA and 25 volts
Power source: 8 standard "C" alkaline batteries
Battery life: 6 months to 1 year under normal use
5 Hz signal for C-Type (Slow Pain) Fibers
250 Hz signal for A-delta (Fast Pain) Fibers
2000 Hz signal for A-beta (Light Touch) Sensory Fibers
Intensity control: Large black dial with readings from 0 to 100
LCD display for calibration checks
Probe with gold tip and cable for electrode connection
Uses Q-tips as electrodes (dipped in saline solutions
Comes with analysis and report software
Provides onsite analysis capabilities
Can test all major peripheral nerves
Non-invasive testing method
