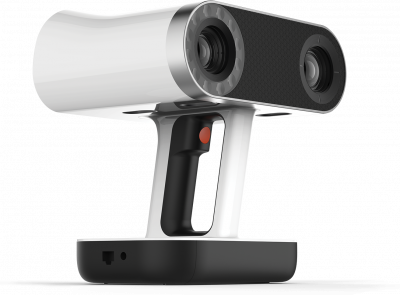

Artec Leo Handheld 3D Scanner (Handheld 3D Scanner)
Artec Leo Handheld 3D Scanner (Handheld 3D Scanner)
Specifications
PRODUCT DESCRIPTION
The Artec Leo 3D scanner is a fast, easy-to-use, wireless tool that captures clear and accurate scans of almost any object. It’s great for engineers, artists, designers, and anyone who needs detailed 3D images. The scanner shows the scan on its screen as you work, and it can handle both small items and large projects. Built for simple use and easy carrying, the Artec Leo helps you work faster and get reliable results every time.
ADDITIONAL INFORMATION
Tech specs
Accuracy & resolution
3D point accuracy: up to 0.1 mm
3D resolution: up to 0.2 mm
3D accuracy over distance: up to 0.1 mm + 0.3 mm/m
Algorithms
HD Mode
Hybrid geometry and texture tracking
Geometry and texture based data processing algorithms
Auto background removal
Field of view
Working distance: 0.35 – 1.2 m
Volume capture zone: 160,000 cm³
Linear field of view, H×W @ closest range: 244 × 142 mm
Linear field of view, H×W @ furthest range: 838 × 488 mm
Angular field of view, H×W: 38.5 × 23°
Texture
Texture resolution: 2.3 mp
Colors: 24 bpp
Ability to use Photo Texture
Capture rate
3D reconstruction rate for real-time fusion: up to 22 fps
3D reconstruction rate for 3D video recording: up to 44 fps
3D reconstruction rate for 3D video streaming: up to 80 fps
Data acquisition speed: up to 35 mln points/s
3D exposure time: 0.0002 s
2D exposure time: 0.0002 s
Light source
3D light source: VCSEL
2D light source: white 12 LED array
Laser wavelength: 808 nm
Laser class: 1
Hardware
Position sensors: built-in 9 DoF inertial system
Display/touchscreen: integrated 5.5" half HD, CTP, optional Wi-Fi/Ethernet video streaming to external device
Power source: built-in exchangeable battery, optional AC power
Dimensions, H×D×W: 231 × 162 × 230 mm
Weight: 2.6 kg / 5.7 lb
ADDITIONAL RENTAL REQUIREMENTS
Renter must provide a valid Certificate of Insurance (COI) before equipment is shipped or picked up, and owner must be listed as an “Additionally Insured.”
A refundable security deposit or pre-authorized hold is required to cover damage, loss, or theft.
Rental begins when equipment is delievered and ends when equipment is shipped
Equipment must be returned clean, undamaged, and with all accessories included.
Renter is fully responsible for any damage, loss, or theft during the rental period, including physical damage, moisture damage, impact damage, or missing accessories.
No repairs, modifications, resets, or internal access to the equipment are permitted.
Late returns will incur daily rental fees until equipment is received.
If returning via shipping, renter must use the provided packaging, insure the shipment for full replacement value, use tracking, and provide proof of shipment within 24 hours.
Equipment may not be used in unsafe or extreme environments (rain, snow, high moisture, dust, sand, excessive heat or cold).
Renter is responsible for exporting and backing up all scan data prior to return; the device will be reset upon receipt.
Only the provided charger may be used. Damage from improper charging will be billed.
Any malfunction, error, or incident must be reported within 12 hours of discovery.
Rental may be canceled if required documents (COI, ID, agreement, payment) are not provided on time.
Equipment may not be taken or shipped outside the United States without written approval.
All shipments must include full tracking, insurance, and signature confirmation.
Equipment may not be used in illegal, hazardous, or explosive environments.
Owner is not responsible for lost work, lost data, or project delays caused by user error or misuse.
Any software provided with the equipment may not be duplicated, shared, or used beyond the rental
