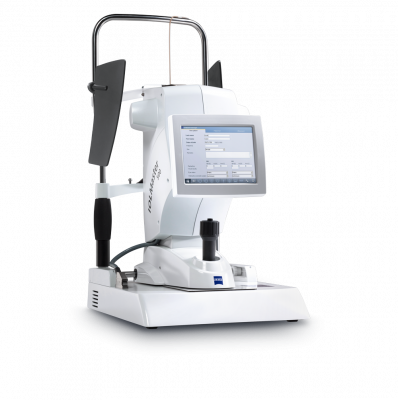

Zeiss IOL Master V5

DESCRIPTION

The Zeiss IOL Master V5 optical biometer offers fast and precise measurements of ocular characteristics necessary for intraocular lens (IOL) power calculations. This non-contact instrument measures of axial length, corneal curvature, anterior chamber depth, and “white-to-white”. The easy-to-use interface clearly guides the operator through the measuring modes and can be performed automatically with the press of a button.
With the IOL Master, the axial lengths and radii of the two eyes are compared and their plausibility is checked offering more reliability, especially with problematic eyes. The system automatically calculates lens power to be implanted using scientifically recognized biometry formulas and then a lens model selected from a clear, integrated database.

Features:

• Measuring ranges
• Axial length 14 – 40 mm
• Corneal radii 5 – 10 mm
• Depth of anterior chamber 1.5 – 6.5 mm
• White-to-white 8 – 16 mm
• Scaling of display
• Axial length 0.01 mm
• Corneal radii 0.01 mm
• Depth of anterior chamber 0.01 mm
• White-to-white 0.1 mm
• Formulas for IOL calculation
• SRK® II, SRK®/T, Holladay, Hoffer Q, Haigis
• Clinical history and contact lens fitting method for calculation of the corneal refractive power subsequent to refractive corneal surgery
• Haigis-L for IOL calculation for eyes after myopic/hyperopic LASIK/PRK/LASEK
• Calculation of phakic anterior and posterior chamber implants
• Optimization of IOL constants Interfaces
• Data interface for office management systems
• Data export to CD-RW or USB storage media
• Provision of data for Holladay IOL Consultant and HIC.SOAP Pro
• Ethernet port for network connection and network printer
• Compliance with HIPAA directive (USA only)in regard to user authentification and identification
