Zeiss HD-OCT 4000 IOL Master System from $958.69/mo

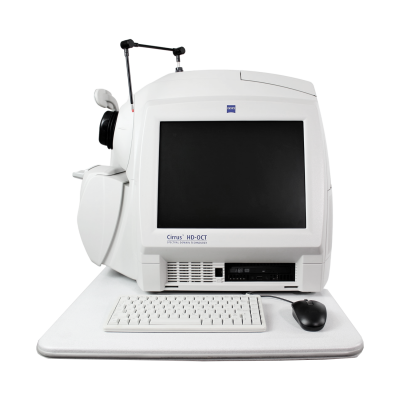

Zeiss Cirrus HD-OCT 4000 Quad Core Windows 10

Zeiss Cirrus HD-OCT 4000 Quad Core Windows 10
Product Specifications
BRAND  Zeiss
MODEL  HD-OCT 4000
DESCRIPTION
The Zeiss Cirrus HD-OCT Model 4000 is a high-definition optical coherence tomography device designed for examining the posterior and anterior segments of the eye without surgical biopsy or contact.

The Zeiss Cirrus HD-OCT 4000 is designed to aid in detecting and managing various ocular diseases, including macular holes, cystoid macular edema, diabetic retinopathy, age-related macular degeneration, and glaucoma.

The Cirrus HD-OCT is a non-contact, high-resolution tomographic and biomicroscopic imaging device designed for in-vivo viewing, axial cross-sectional, and three-dimensional imaging and measurement of both anterior and posterior ocular structures. These structures include the cornea, retina, retinal nerve fiber layer, ganglion cell plus inner plexiform layer, macula, and optic nerve head. The device utilizes normative databases as quantitative tools to compare retinal nerve fiber layer thickness, macular thickness, ganglion cell plus inner plexiform layer thickness, and optic nerve head measurements against a database of normal subjects.

The Cirrus HD-OCT is intended for use as a diagnostic tool to aid in the detection and management of various ocular diseases, including but not limited to macular holes, cystoid macular edema, diabetic retinopathy, age-related macular degeneration, and glaucoma.
ADDITIONAL INFORMATION
FEATURES:
  • Quad core computer
  • Eye tracking latest revision software
  • Spectral domain imaging
  • Cirrus cube analysis
  • Macular normative data
  • 3D rending
  • Acquisition auto focus
  • Anterior segment analysis
  • Optional FastTrac and up to 10 review licenses
SPECIFICATIONS:
  • HD OCT imaging:
    • Methodology: Spectral Domain OCT
    • Optical Source: superluminescent diode (SLD), 840 nm
    • Optical Power: < 725 μW at the cornea
    • Scan Speed: 27,000 A-scans per second
    • A-Scan depth: 2.0 mm (in tissue), 1024 points
    • Axial resolution: 5 μm (in tissue)
    • Transverse resolution: 15 μm (in tissue)
  • Fundus Imaging:
    • Methodology: Line scanning ophthalmoscope
    • Live Fundus Image: During alignment and during OCT scan
    • Optical Source: Superluminescent diode (SLD), 750 nm
    • Optical Power: < 1.5 mW at the cornea
    • Field of View: 36 degrees W x 30 degrees H
    • Frame rate: >20 Hz
    • Transverse resolution: 25 μm (in tissue)
  • Iris Imaging:
    • Methodology: CCD Camera
    • Resolution: 1280 x 1024
    • Live iris image: During alignment
  • Electrical, Physical and Environemental:
    • Weight: 38kg (83 lbs)
    • Dimensions: 65L x 44W x 53H (cm)
    • Fixation: Internal, external
    • Internal fixation focus adjustment: -20D to +20D (diopters)
    • Input devices: Keyboard, mouse
    • Electrical rating (115V) Single Phase, 100/120V~ systems:50-60Hz, 5A
    • Fuse rating (115V) T 5A 250V
    • Electrical rating (230V) Single Phase, 220/240V~ systems:50-60 Hz, 2.5A
    • Fuse rating (230V) Fuse rating: T 5A 250V
    • Convenience Receptacle output ratings 115V~, 0.5 A Max, 50-60 Hz
    • Temperature (transport and storage) -40º to +70º C
    • Relative humidity (transport and storage) 10% to 100%, including condensation
    • Atmospheric pressure (transport and storage): 500 hPa to 1060 hPa
    • Temperature (operation) +10º to +35º C
    • Relative humidity (operation) 30% to 75%, excluding condensation
    • Atmospheric Pressure (operation) 700 hPa to 1060 hPa
  • Computer:
    • High performance multi-core processor
    • Internal storage: > 80,000 scans
    • CD-RW, DVD-ROM drive
    • Integrated 15″ color flat panel display
