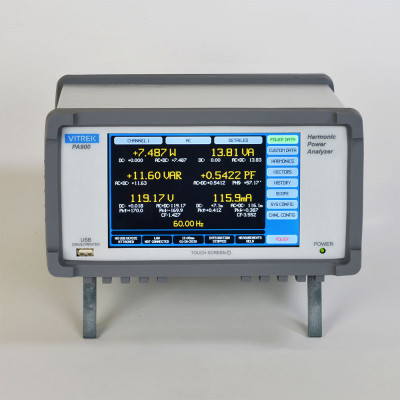

Vitrek PA904AD Precision Harmonic Power Quality Analyzer

DESCRIPTION

Introducing the Vitrek PA900 Precision Harmonic Power Analyzer, a refreshingly easy-to-use high performance power analyzer that won’t break your budget. The PA900 delivers multi-channel, high-accuracy, wideband performance – to tackle the toughest energy measurement applications. Trust Vitrek to deliver world class power measurement capability at a price that is surprisingly affordable.

ADDITIONAL INFORMATION

Product Features:

• Most advanced Power Measurement Platform with an unprecedented range of capabilities
• Highest Precision with Industry leading noise floor – as low as 1ppm vs 300ppm or more on competitive units
• Up to 500 Harmonics at 400Hz, meets Airbus avionics harmonics measurement criteria. Bar graph also features fingertip selectable numeric amplitude and phase data
• Large, Hi-Resolution Color Display shows all the data you want with an easy-to-use touchscreen user interface to get you up and testing in no time
• Modular design lets you choose up to 4 Power Measurement Channel Cards in any combination of 3 different Channel Card types
• The S type Channel Card provides 0.1% basic Accuracy with 1 MHz class bandwidth for an extremely economical price
• The A type Channel Card offers world class 0.03% basic accuracy with 1MHz class bandwidth at a very reasonable cost
• The L type Channel Card offers capabilities similar to the A card but optimized for levels below 100V with resolution down to 10uV
• The W type Channel Card delivers 5 MHZ class bandwidth and a 0.1% basic accuracy
• All Channel Cards types are available with one of 3 current input options: D – Dual Shunt, H – High Current and X – External Current Transducer Input
• Built-in Data Logger – Logs up to 16 selectable data results to USB thumbdrive or internal data storage. Intervals from 10mS to 100 hours with optional time/date stamps
• Power Data Screen – displays V, A, W, VA, VAR and PF data for any selected channel or group of channels
• Custom Power Data Screens – lets you choose the color, font size, location and data you want displayed
• With selectable time base and triggering – Scope View, acts as a digital scope to capture events such as in-rush current
• Cycle View – Represents a single cycle of the voltage and current periodic waveforms sampled over many cycles within a measurement period
• Vector Screen – Displays up to 10 fundamental voltage & current vectors
• History Screen – Like a DVR, the PA900 automatically maintains a continuous historical recording of measurement data. Any data from this record may be viewed or downloaded. Pause, clear & restart functionality is available from the HISTORY screen or via interface
• Standby Power Screen – Test in accordance to EN50564:2011 with an easy to set up, easier to use built in application. One screen holds all of your necessary data.
• Effective Sampling Rate – for analysis of periodic signals within a measurement period is 384MSPS
• Measurement Resolution – 22 bit for S & W type Channel Cards, 24 bit for A type
• Up to 3 Different Virtual Power Analyzers™ (VPAs) may be configured for three phase measurements or input/output efficiency tests – so there is no need to interconnect separate units in order to make synchronous or non-synchronous group power measurements
• VPA Efficiency Grouping – Available data includes: Power totals for IN, MIDDLE and OUT efficiency groups, the power loss between any pair of groups, and the percentage efficiency between any pair of groups
• VPA Multi-Channel Wiring – Each VPA may be configured as 2ø3w (2 ch), 3ø3w (2 ch), 3ø3w (3 ch), 3ø4w (3 ch)
• Connectivity – Ethernet, High Speed Serial and USB (client) control interfaces
• Optional Multi-Unit (Option MU) connection available to combine multiple PA900 units to enable you to make measurements with up to thousands of channels
• Front Panel USB Drive Interface – Permits data logging to a file, ‘screen shot’ capture, easy import and export of: display and measurement configurations & custom data screen definitions
• Available MT type Channel Card for motor torque & speed inputs
• CE mark certified to EN61010
