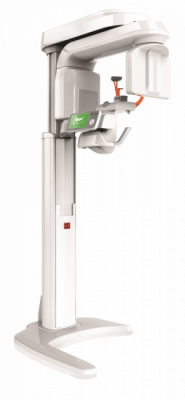

PaX-i - The Prime Choice for Digital Dental Imaging
Simple & Compact Design
PaX-i is small and compact in size and design. It`s designed to fit in the standard X-ray room. No additional space is required.
EzDent 4.0 - Integrated Program for Diagnosis and Communication with Patient
"EzDent" is easy to learn and convenient to use. It is a communication and patient database tool.
In addition, various image formats are supported (bmp, jpg, tif, dcm, etc).
This program can easily be integrated with other clinical patient management systems.
Specifications
Function: Pano
Exposure Time TMJ : 3sec
Normal : 9.7sec
High Resolution : 13.5sec
Dimension (WxDxH mm) 1115x1150x2200
Weight 75kg
Generator Voltage : 50-80kVp
Current : 2-10 mA
Focal Spot 0.5 mm
Patient Position Standing/Wheel-chair accessible
FDD(SID) 531.2mm
Generator Continuous type
Gray Scale 14bit
Sensor Type CMOS
Pixel pitch100μm
Panoramic Programs
- Standard Panoramic Program
Normal / Narrow / Wide program
- High resolution program
- Child program
TMJ Programs
- Lateral / PA TMJ program -Bitewing
- 3 angles TMJ program (i)
Sinus Programs
- Lateral / PA sinus program
- 3 angles sinus program (i)
Special Programs
- Horizontal / Vertical
- segment programs
- Bitewing
- Orthogonal
- Cross-section (i)
* (i) stands for the intelligent mode with AMPT technology
Acquisition computer included
For more information please check out the PaX-i product brochure.
This unit MUST be plugged into a dedicated electrical circuit with breaker to insure consistent current.
CBCT Options
- CT-FOV 10x8
- CT-FOV 16x10 *Additional Price*
- CT-FOV 15x15 *Additional Price*
Installation Options
- Installed *Additional Price*
- No Installation
Vatech Mounting Options
- Wall Mount Support
- Base Plate (shown) *Additional Price*
