Tuttnauer 2340EA (EZ9) Automatic Autoclave

DESCRIPTION

Allow for 7 to 10 day lead time

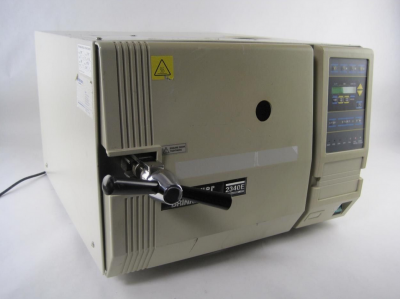

Tuttnauer 2340EA (EZ9) Refurbished Autoclave Sterilizer
To sterilize wrapped and unwrapped instruments, glassware, and other related items found in dental, medical and veterinary clinics, tattoo parlors, first aid rooms, hospitals, laboratories and other related industries use a Tuttnauer 2340EA table-top autoclave.
The enhanced closed door active drying system maintains the sterile field and ensures complete drying of packs and pouches. The efficient air pump forces hot air circulation after the sterilization cycle for faster, more efficient closed door drying. Features a bacteriological Hepa filter 0.2 µm air filter (replaceable), Four pre-loaded cycles for unwrapped instruments, wrapped/packs and porous loads, glassware or slow exhaust for liquids or additional drying cycle.
All program parameters can be customized and stored. This unit has a contemporary design with a bright blue easy to read digital control panel. There is an automatic shut-off at the end of both the sterilization and dry cycles. There are audible and visual cycle interruption alerts and a.double safety locking device that prevents the door from opening while the chamber is pressurized.
The low water sensor prevents activation of the sterilization cycle when there is insufficient water in the chamber or reservoir, with constant monitoring of temperature and pressure for sterilization. In the event of a power outage, the unit will automatically complete its cycle.
The door design prevents steam from coming in contact with the control panel. It has an exceptionally deep chamber made from 316L grade electro polished stainless steel. The drain valve located on the front allows for fast and easy draining of the water reservoir.
FeaturesVolume / Speed/PowerDimensions / Weight

• Front panel controls



• Safety device to prevent premature opening while unit is pressurized



• Time-saving Reset button



• Dual safety thermostat to protect against over heating



• When sterilization and the dry cycle is completed the unit automatically shuts off.


• 5 Gallon Chamber (19 Liters)



• Holds 3 trays



• Cycle Time: Varies based on items to be sterilized - Wrapped instruments 20-30 minutes


• Temperature Range: 250 degrees F thru 274 degrees F (121C - 134C)

• Electrical: 120 volts, 1400 watts, 50/60 HZ, 11.7 AMPS

• Unit Weight: 90 lbs (40.8kg)

• Overall Size:Width:
  20" (50.8 cm)
  Length:
  21-1/2" (54.6 cm)
  Height:
  14-1/2" (36.8 cm)



• Chamber:Diameter:
  9" (23 cm)
  Length:
  18-1/2" (46.9 cm)



• Tray Size:Width:
  6-3/4" (17.1 cm)
  Length:
  16-1/4" (41.3 cm)
  Height:
  3/4" (1.9 cm)


This autoclave has been through our careful refurbishment process as follows:

• We conduct a thorough inspection of ALL components, cosmetics and functionality.
• Replace all worn or bad parts.
• Sand and paint the frame and chassis as needed.
• Clean reservoir tank by removing debris and particulates.
• Clean and polish chamber and reservoir. Blowout all lines.
• Replace safety mechanisms, controls, relays, condenser, thermostat, valves, switches, filters and all other parts as needed.
• Clean and lubricate all moving parts.
• Inspect and repair all pressure and water leaks.
• Check and lubricate door closure.
• Replace door gasket regardless of condition.
• Test and calibrate to manufacturer's specifications.
• Repeated cycle testing for added assurance.
• Spore testing at various positions within the chamber.


What's In the Box?

Refurbished Tuttnauer 2340EA Autoclave
Operator Manual
2 Trays
5 Biological Test Strips
