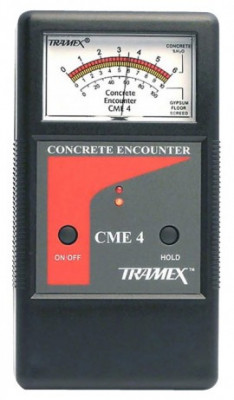

Tramex CME4 Concrete Moisture Detector

PRODUCT DESCRIPTION

Non-invasive handheld electronic instrument used for testing moisture conditions in concrete slabs and giving comparative readings in other cementitious floor screed.

Features

• Calibrated specifically for concrete
• Non-destructive operation per ASTM F2659 (no drilling or mechanically damaging the surface)
• Detects and evaluates the moisture conditions within the slab by non-destructively measuring the electrical impedance
• Low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument; the strength of this signal varies in proportion to the amount of moisture in the material under test
• Spring-loaded contact pins compensate for uneven concrete and boost signal penetration
• Calibrated to give percentage moisture content readings on clean, bare dust free concrete floor slabs, with a depth of penetration of approx. 3/4"
• Large easy to read analog display
• Hold function "freezes" meter reading when inspecting areas where the meter face is not visible
• Instant readings, measures up to 6% moisture content for concrete, up to 10% for gypsum screed and 0 to 100 reference scale

Specifications:
Depth of Penetration: Approx. 20 mm (¾")
Moisture Content for Concrete: 0 to 6%
Carbide Method Moisture Content Equivalent for Concrete: 0 to 4
Equivalent for Anhydrite: 0 to 1.9
