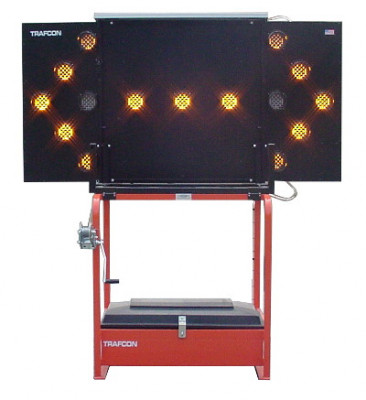

TRAFCON TM Series Vehicle Skid Mounted

TRAFCON TM Series Vehicle Skid Mounted
Specifications
PRODUCT DESCRIPTION
VEHICLE SKID MOUNTED ADVANCED WARNING PANELS

FEATURES
  • Power Tilt sign panel
  • Maximum lamp intensity regardless of control cable length (no voltage drop)
  • Easily moved from truck to truck
  • Type “C” sign panel
  • Onboard 30 Amp AC Charger
  • Self-contained power supply
  • Mounts in any truck bed
  • LED full matrix controller display with operator preview
  • Audible low battery alarm
GENERAL
  • Weight: 650 lbs.
  • Height: 77″ traveling (down) position. 103″ operating (up) position.
  • Overall width: 96″
  • Frame width: 48″
  • Overall depth: 48″
  • Frame depth: 36″
  • Frame: 1 3/4″ x 1 3/4″ x 1/8″ steel tubing
  • Sign Panel Support: 1″ x 2″ x 1/8″ steel tubing
  • Battery Compartment: Linear, Low density polyethylene
SIGN PANEL
  • Construction: Sandwich type
  • Material: Front and back panels .063″ aluminum
  • Framework: Welded 3″ x 1″ x 1/8″ extruded aluminum
  • Lamps: PAR 46 amber
  • Hoods: 360 degrees high impact plastic
  • Lifting Mechanism: Dual 250 lb. 12-volt actuators
BATTERY POWER SUPPLY
  • ​Batteries: (4) Group GC-2, 6V deep cycle
  • Voltage: 12 volt DC
  • Amperage: 225 A H each
  • AC Charging: 30 Amp Charger
CONTROL SYSTEMS AND CIRCUITRY
  • Voltage: 12-volt DC
  • Circuitry: Solid state microprocessor
  • Protection:Short Circuit, Reverse polarity
  • Dimming: Automatic
