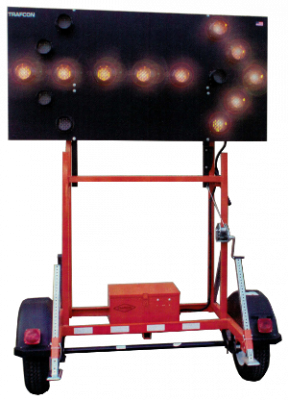

TRAFCON TC1 E-Class | Rent, Finance, or Buy

TRAFCON TC1 E-Class

TRAFCON TC1 E-Class
Specifications
PRODUCT DESCRIPTION
E-CLASS TRAILER MOUNTED ADVANCED WARNING PANELS
FEATURES
ARROWBOARD
  • Long lasting LED lamps
  • Wide wheel base for towing stability
  • Microprocessor based controller
  • “PWM” technology for extended lamp life
  • Automatic default 4 corner caution
  • 13″ automotive wheels and tires
  • Powder coat process
  • Rugged polyethylene low density fenders
  • 1 screw jack on tongue and 4 corner drop jacks
SOLAR PANEL
  • Single crystal panels provide higher performance.
  • Panels can maintain horizontal position in operating and trailering modes.
  • Solar panels are mounted at the top of the sign for vandal resistance.
TRAILER
  • Length: 107″
  • Width: 96″ (including sign panel) Width across fenders. 83″
  • Tongue: 2 1/2″ x 2 1/2″ x 3/16″ tubing
  • Frame: 2″ x 3″ x 1/8″ tubing (sides)
  • 3″ x 4.1 lb. structural channel (front and rear)
  • Superstructure: 2″ x 2″ x 1/8″ tubing
  • Sign Panel support: 2″ x 2″ x 1/8″ formed channel
  • Battery enclosure: Powder coated steel with lockable full lid
  • Fenders: Low density thermoplastic with splash shields
  • Safety chain: 36″ x 1/4″ proof coil plated chain with hooks
  • Leveling jacks: Drop jacks four corner, anti-slip feet
  • Trailer hitch: 2″ ball or pintle ring
  • Axle: 2000 lb. capacity
  • Springs: 3 leaf, double eye
  • Track width: 71″
  • Height: 132″ operating (up) position – 92″ traveling (down) position
  • Weight: 1150 lbs.
  • Finish: Highway Orange powder coat
SIGN PANEL
  • Construction: Sandwich type
  • Material: Aluminum
  • Front and back panels 48″ x 96″ x .063″ sheet
  • Framework – 3″ x 1″ x .125″ formed channel (welded)
  • Lamps: PAR 46, amber, LED
  • Lamp hoods: 360 degree high impact plastic
  • Lifting mechanism: 1000 lbs.
CONTROL SYSTEM AND CIRCUITRY
  • Voltage: 12V nominal (supply)
  • Circuitry: Solid state microprocessor
  • Protection: Reverse polarity / short circuit / protection automatic
  • Dimming: Automatic
SOLAR CHARGING SYSTEM
  • 55-watt single solar panel (optional upgrades available)
  • Continuous intensity feature – constant lamp intensity to cutoff
  • Low battery cutoff – 11V
  • Solid State Charge Controller
  • Battery condition indicator LED
  • Solar panel mounting – continuous horizontal positioning
POWER SUPPLY / BATTERY​
  • Batteries: 2 group GC-2, 6 V Deep cycle 200 amp hours each
  • Voltage: 12V DC
  • Charging: (optional battery charger available)
