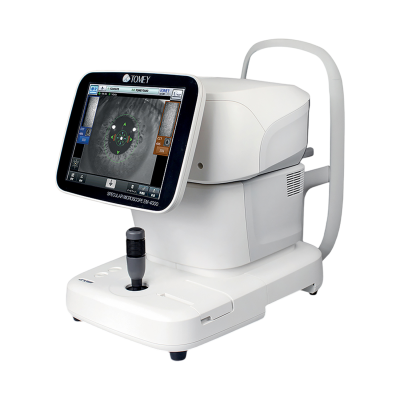

Tomey Specular Microscope EM-4000

Tomey Specular Microscope EM-4000
Specifications
BRAND  Tomey
MODEL  EM-4000
PRODUCT DESCRIPTION
The Tomey EM-4000 is an advanced specular microscope designed for observing and analyzing the corneal endothelium. This non-contact ophthalmic device offers a range of innovative features that enhance its functionality and ease of use.

The Tomey EM-4000 Specular Microscope combines advanced technology with user-friendly features, making it an efficient tool for corneal endothelium imaging and analysis in ophthalmic settings.
ADDITIONAL INFORMATION
FEATURES:
  • Imaging and Analysis:
    • Automated Imaging System:
      • The EM-4000 uses an LED light source and a high-speed CCD camera to capture 16 images in series, automatically selecting and displaying the best one.
    • Wide Area Capture:
      • It can capture large areas, including external peripheral regions of the cornea.
    • Multiple Measurement Points:
      • The device allows measurements at the center and 14 peripheral points.
    • Analysis Capabilities:
      • Automatic analysis with integrated software
      • Manual analysis options: "Core Method" and "L-count system"
      • Dark area analysis function
    • User Interface and Design:
      • User-Friendly Interface:
        • Features a 10.4-inch tilting color LCD touchscreen with a new graphics interface.
    • Adjustable Design:
      • The touchscreen is oversized and adjustable for user comfort.
  • Measurement and Functionality:
    • Auto-Alignment and Auto-Measurement:
      • Enhances ease of use and accuracy.
    • Integrated Non-Contact Pachymetry:
      • Allows for corneal thickness measurement without contact'
    • Increased Speed:
      • Ensures patient comfort during examinations
  • Data Management:
    • Integrated Database:
      • Allows storage and re-analysis of data.
    • Connectivity Options:
      • Includes USB ports, LAN connection, and SD card slot for data backup and transfer.
  • Additional Features:
    • Built-in Thermal Printer:
      • For immediate printing of results.
    • Barcode Reading System:
      • Enables more immediate patient follow-up.
    • Joystick Control:
      • Captures video and images for enhanced usability.
SPECIFICATIONS:
  • Imaging Specifications:
    • Photographing Method:
      • Non-contact
    • Photographing Range:
      • 0.25mm x 0.54mm
    • Capturing Positions:
      • Center + 14 peripheral points
    • Cornea Thickness Measurement Accuracy:
      • +/-10μm
  • Analysis Capabilities:
    • Analysis Methods:
      • Automatic analysis
      • L-count system
      • Core Method
  • Analysis Values:
    • Number (number of analyzed cells)
    • CD (cell density)
    • AVG (average cell area)
    • SD (standard deviation of cell area)
    • CV (coefficient of variation of cell area)
    • Max (maximum cell area)
    • Min (minimum cell area)
  • Histogram Types:
    • Area (Polymegathism:
      • Distribution by areas)
    • Apex (Pleomorphism:
      • Distribution of polygonal shapes types)
  • Physical Specifications:
    • Display:
      • 10.4-inch color LCD touchscreen
    • Dimensions:
      • 309 (W) x 491 (D) x 450 (H) mm
    • Weight:
      • Approximately 22 kg
    • Stroke of Moving Sections:
      • X-axis: 88mm
      • Y-axis: 40mm
      • Z-axis: 50mm
    • Stroke of Chin Rest:
      • 70mm
  • Connectivity and Output:
    • Built-in Printer:
      • Thermal printer
    • Data Output Types:
      • USB-H x2
      • USB-D x2
      • LAN
      • SD Card (for internal Database)
  • Power Specifications:
    • Power Source:
      • 100 VAC-240VAC; 50/60 Hz, 100VA
  • Measurement Modes:
    • Measurement Modes:
      • Auto/Manual/Auto Alignment Manual Shot
    • Analysis Time:
      • 2.5 seconds per eye
COMPATIBILITY:
  • Network Compatibility:
    • DICOM Compatibility:
      • While not explicitly stated for the EM-4000, some specular microscopes in the same category are noted to be DICOM compatible.
    • Network Integration:
      • The device is described as "fully networkable".
  • Data Output and Connectivity:
    • Multiple Connection Options:
      • The EM-4000 offers various data output types, including:
        • USB-H x2
        • USB-D x2
        • LAN connection
        • SD Card slot (for internal database)
        • These multiple connection options suggest compatibility with various external devices and data transfer systems.
  • Software Compatibility:
    • Database Function:
      • The EM-4000 has a built-in database function that allows for data storage and re-analysis.
    • Analysis Software:
      • The device includes integrated software for automatic analysis, as well as manual analysis options.
  • Hardware Compatibility:
    • Printer Compatibility:
      • The EM-4000 features a built-in thermal printer.
    • Barcode Reading System:
      • The inclusion of a barcode reading system[1] suggests compatibility with standard barcode formats used in medical settings.
ACCESSORIES (OPTIONAL):
  • Chin Rest Paper:
    • Disposable covers for the chin rest to maintain hygiene between patients.
  • Printer Paper:
    • Replacement thermal paper rolls for the built-in printer.
  • Cleaning Kit:
    • Specialized cleaning solutions and cloths for maintaining the optical components.
  • Dust Cover:
    • A protective cover for the device when not in use.
  • Calibration Tools:
    • Instruments used for periodic calibration of the device.
  • SD Cards:
    • For additional data storage and backup.
  • USB Devices:
    • For data transfer and connectivity, given the USB ports available on the device.
  • Barcode Scanner:
    • To complement the barcode reading system mentioned in the features.
