DESCRIPTION

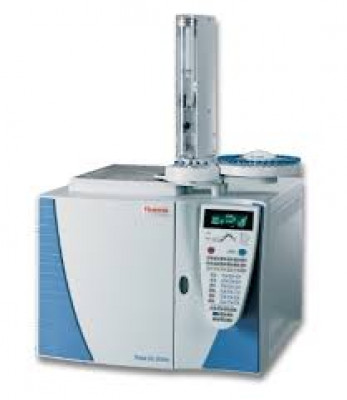

The TRACE GC UltraTM is built around the recognized quality, reliability and ruggedness of the established TRACE GC. Ultra performance, reliability, and usability make this a must-have GC for any laboratory. Automated features result in a tremendous increase in sample throughput, with analyses performed up to 30 times faster than before, without compromises in precision.
Built around the recognized quality, reliability and ruggedness of the established TRACE GC, the new Ultra platform incorporates innovative solutions, such as the new Ultra Fast and Large Volume splitless techniques, delivering unprecedented performance.
Featuring a linear heating rate of up to 1200 °C per minute, the TRACE GC Ultra is able to dramatically decrease sample run times in a wide range of GC applications from crude oils, pesticides and hydrocarbons determination, to drug screening and food and flavors characterization. Combined with conventional GC or MS detectors, this technique enormously increases lab productivity without compromising analytical resolution, precision or reliability.
Thermo GCs, including the versatile dual channel TRACE GC Ultra and the single-channel high productivity workhorse FOCUS GC, offer fast separation capabilities combined with the most innovative GC injection techniques.
ADDITIONAL INFORMATION
The CTC Analytics MZ 06-00D GC-PAL Injection Head preforms complete testing and evaluation of its products to ensure full compliance. The general system overview includes X and Y axes assembly, injection unit Z axis, tray and tray holder, and syringe adapter.
Specifications:
– Dimensions (W x H x D): 32.6 x 23.5 x 15.2 in.
– Weight: 22 lbs
– Operating temperature range: 4 to 40 C
– Maximum relative humidity: 75%, non-condensing
– Input line voltage: Grounded AC, 100 to 240 V
– Input line frequency: 50/60 Hz
– Input power: 4 A
– Output voltage: 36 VDC
– Output current: 4.16 A
Column Oven
Programmability: 7 Ramps/8 Plateaus. Temperature range: few degrees above ambient to 450 °C. Maximum Temperature ramp: 120 °C/min. Typical heat-up: from 50 °C to 450 °C in 420 seconds. Typical cool down: 450 °C to 50 °C in 250 seconds. Sub-ambient: -99 °C with liquid N2, -55 °C with CO2 options.
