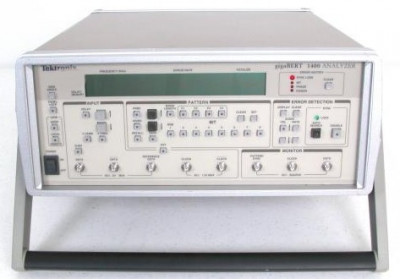

Tektronix GB-1400T

Tektronix GB-1400T
Product Specifications
DESCRIPTION
The GB1400T Pattern Generator operates at bit rates up to 1400 Mb/s; Instrument is cost-effective for lower-speed applications today and will accomodate your future high-speed requirements as well. Use with GB1400R Error Detector.

Specifications
  • Frequency Range:
  • Internal Clock Source: 1 Mb/s to 1400 Mb/s
  • External Clock with Burst Mode: 150 kb/s to 1400 Mb/s
  • Freq. Resolution (Internal Clock): 10 kHz
  • Clock Output Amplitude: 500 mV to 2.0 Vp-p in 50 mV steps
  • Clock Output Offset: -2.0 V to 1.8 V in 50 mV steps
  • Data Output Amplitude: 500 mV to 2.0 Vp-p in 50 mV steps
  • Data Output Offset: -2.0 V to 1.8 V in 50 mV steps
  • Data Delay Range: ?4 ns
  • Data Delay Increments: 5 ps
  • Clock Delay: ?4 ns
  • Clock Delay: 5 ps
  • PRBS Patterns (2n -1): 7, 15, 17, 20, 23
  • Burst Mode (ECL levels only): Standard feature
