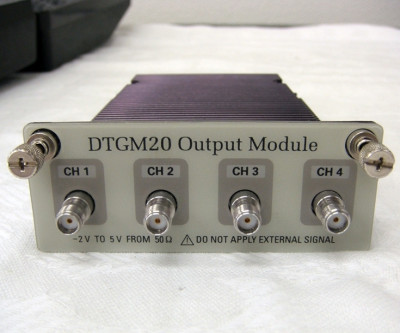

Tektronix DTGM20

Product Specifications

DESCRIPTION

Output module for use in DTG5078 or DTG5274 connections: 4 single-ended (installed in DTG5078) 2 single-ended (installed in DTG5274) 4 SMA connectors

Specifications

Transition timies : < 340 ps (VOL = 0.0, VOH = 1.0) (typ)
Transition times: < 760 ps (VOL = -1.0, VOH = 2.0) (typ)
Amplitude Resolution: 0.1 to 3.5 Vp-p/5 mV (into 50 ohm)
Amplitude Resolution: 0.2 to 7.0 Vp-p/5 mV (into 1 M ohm)
DC accuracy: +/-50 mV into 50 ohm to GND
Typical Logic supported: TTL, CMOS, (P)ECL, LVPECL
