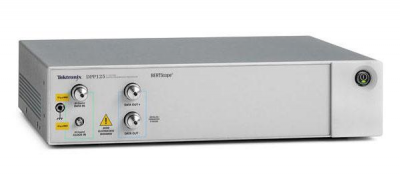

The Tektronix DPP125B BERTScope is a nonlinear signal processor capable of adding regulated amounts of pre-emphasis to a signal. Receiving single-ended inputs of data and clock, the Tektronix DPP125B conditions the signal by adding calibrated amounts of pre-emphasis for use with Bit Error Rate Testers. This signal conditioner can function as a stand-alone instrument operated by a PC. It can be completely automated and owing to its compact size, the Tektronix DPP125B is designed to fit into a manufacturing setup.
Use the Tektronix DPP125B for the design characterization for high-speed, sophisticated designs, accreditation testing of serial data streams for industry standards and design/verification of high-speed I/O components and systems.
Hardware-based equalization of 2nd- and 3rd-generation serial standards supported through data rate range of 1 to 12.5 Gb/s
3- or 4-tap for full support of compliance testing
Augmenting compensation for ISI and loss with Pre-cursor or post-cursor adjustment
Multiple domain views ideal for functioning as a stand-alone instrument controlled by a remote PC, or with a BERTScope for complete software integration
Precise control to correct for properties such as Backplane ISI
Optical effects with adjustability through Tap Weights
Complete design characterization achieved through step response
