Tektronix CR286A

DESCRIPTION

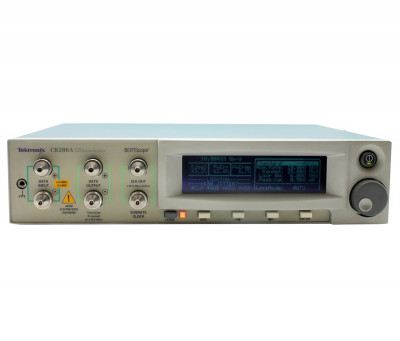

The CR286A Clock Recovery Unit is part of Tektronix's BERTScope Clock Recovery CR Series.
The BERTScope Clock Recovery CR Series advanced architecture measures and displays the PLL frequency response from 100 kHz to 12 MHz; the highest loop bandwidth available for jitter testing on the market today. The first clock recovery instruments to allow full control of parameters including loop bandwidth, peaking/damping, and roll off.

Here are some of the key features of the Tektronix CR286A Clock Recovery Unit:

• Data Rate Range up to 28.6 Gb/s
• Independent control, measurement, and display of phase lock loop (PLL) BW, JTF (jitter transfer function) and peaking
• Clock Recovery Input Equalization
• Edge Density Measurement Jitter Spectral Analysis and Frequency Gated Integrated
• Jitter Measurements
• Optional 24 MHz PLL BW
• Extensive set of subrate (recovered) clock outputs

Specifications

• Data Rate Range up to 28.6 Gb/s
• Independent control, measurement, and display of phase lock loop (PLL) BW, JTF (jitter transfer function) and peaking
• Clock Recovery Input Equalization
• Edge Density Measurement
• Jitter Spectral Analysis and Frequency Gated Integrated Jitter Measurements
• Extensive set of subrate (recovered) clock outputs.
• Optional 24 MHz PLL BW
