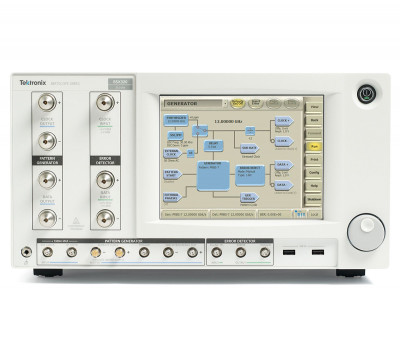

The Tektronix BSX320 BERTScope BSX-series Bit Error Rate Tester introduces a receiver test platform capable of supporting emerging Gen4 standards and beyond. With the addition of powerful data processing and internal Tx equalization, the BSX320 BERTScope supports protocol-based handshaking and synchronization with your device under test (DUT), including interactive link training at data rates up to 32 Gb/s. As part of the BSX-series, the BSX320 shortens the time to debug physical layer and link training issues, and provides the quickest path to compliance for a broad range of standards.
Key Features and Specifications of the Tektronix BSX320:
Pattern Generation and Error Analysis up to 32 Gb/s
Optional built-in 4-tap Tx equalization with support for interactive link training
Protocol-oriented and bit-oriented multi-chain pattern sequencing with enhanced pattern/sequence editor
User-defined detector pattern matching with stimulus-response feedback
Patented Error Location Analysis? goes beyond BER measurement to provide insight into the sources of errors through analysis of correlations and deterministic error patterns
Optional Forward Error Correction analysis provides for simulation of post-FEC error rate based upon measured error location patterns Integrated Eye Diagram Analysis with BER Correlation including Mask Testing, Jitter Peak, BER Contour
Optional Jitter Map Comprehensive Jitter Decomposition - with Long Pattern (i.e. PRBS-31) Jitter
