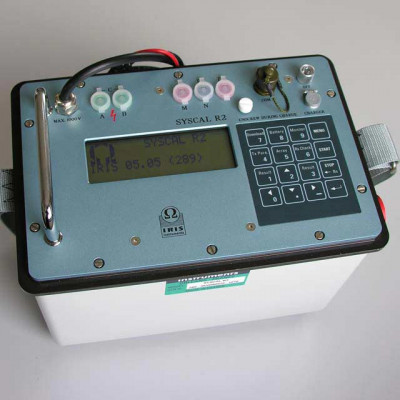

SYSCAL R2

PRODUCT DESCRIPTION

The Syscal R2 unit is a high-power system designed for DC electrical surveys applied to groundwater exploration, environmental studies, civil engineering, structural geology investigation and mineral exploration.

This system uses an external DC source for the injection:
- A 250W DCDC converter supplied by a 12V battery
- A 1200W AC/DC converter supplied by a standard motor generator.

The Syscal R2 combined with the 1200W converter is therefore particularly adapted to reach high depth for groundwater exploration. It can be used with an external Switch Pro box.
It can be used for civil engineering, groundwater and environmental projects, to solve problems such as depth-to-bedrock determination, localization of weathered bedrock. Its power makes it adapted to detect fault in fractured bedrock aquifers and to explore groundwater aquifers (depth and thickness).

Applications
Water ressources

• Locate conductive fault in fractured acquifere
• Assess water table characteristics
• Characterize salt water wedge extension in groundwater

Environment

• Monitor pollution
• Detect leaks and monitor degradation in waste disposal
• Locate and image buried structures

Natural hazard

• Detect and characterize cavities
• Assess landslide extension and volume
• Detect and locate clayey layers for geotechnical application

Mineral exploration

• Detect dike type orebody
• Deep orebody or detection
• Detect lens type orebody

Transmitter

• Voltage:
  • 0 - 1600 Vpp
• Current:
  • 0 - 2500 mA
• Power:
  • External 250W DC/DC converter,
  • and 1200W with external AC/DC
• Battery:
  • internal battery

Receiver

• Pulse duration:
  • 250ms, 500ms, 1s, 2s, 4s, or 8s
• Channels:
  • 2 channels
• Input Impedance:
  • 100 MOhms
• Input Voltage:
  • 15V, automatic gain, input protection 1000V
  • 1 µV / 0.2%

Resolution / Accuracy:

• Readings:
  • Resistivity, Self potentiel, Induced polarisation ( Up to 20 windows), Quality control, and optional full waveform
• Noise Rejection:
  • power line rejection, SP linear drift correction.
• Storage:
  • 44800 readings, up to 8 hours full waveform , stored on solid state memory

Dimensions

• ( L x W x H)
  • 31x21x21cm Fiber glass casing, weather proof,
• weight:
  • 5.2Kg with internal battery
• Operating Temp.:
  • -20 to +70°C
