Description

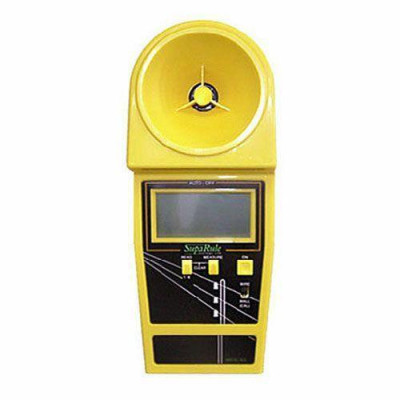

The SupaRule Cable Height Meter is a handheld meter for measurement of cable sag, cable height distance, and overhead clearance of conductors. It is a modern alternative to telescopic measuring poles. The SupaRule Cable Height Meter utilises ultrasonic signals to determine the height of overhead cables up to 15 meters (23 meters with the 600 model).
Used by line operators within the utilities industries, e.g., electricity and telecomunications, the CHM 190 measures the height of a single wire.
How It Works
The Cable Height Meter emits short bursts of sound which originate from the cone-shaped transmitter. The microprocessor in the instrument calculates the elapsed time for the burst of sound to be reflected from the cable back to the instrument. The result can be displayed in either imperial or metric format.
To account for the fact that speed of sound varies with temperature, a temperature sensor, mounted at the front of the instrument, senses the actual air temperature, and automaticcaly compensates.
Applications
Applications include height measurement of:
- Telephone lines
- Distribution lines
- Transmission lines
- Cable television
- Street lighting
- SAG (lowest point to ground)
- Clearances on construction sites
Features & Benefits
- Quick Measurement- saves time and money
- Inherently Safe- no physical connection to cables or wires required to obtain measurement
- Extremely Accurate- measures to accuracy of 0.5%
- Ease of Use- simple, three button operation ensures fast, effective measurements with a minimum of operator training
- Compact Size- Its light weight and hand held portability allows easy transport and multiple measurements
Specifications
A
mbient Temperature = 20CSupaRule 190
Range (25mm cable min) 3 - 15m
Range (12mm cable min) 3 - 15m
Range (5.5mm cable min )3 - 12m
Range (2.5mm cable min) 3 - 10m
Number of wires measured 1
Accuracy 0.5%_ 2 digits
Resolution (range <10m) 5mm
Resolution (range >10m) 10mm
Operating Temperature Range -10C to 40C
Dimensions 205 x 100 x 70mm
Weight 0.5kg
