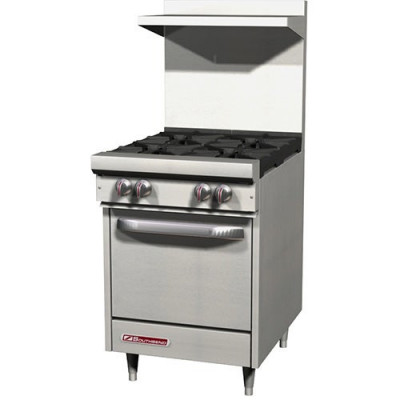

Southbend S24E Gas Commercial Range

DESCRIPTION

The Southbend S24E Commercial Range and Oven is features a space saver oven and 4 burners to cook delicious meals within a short amount of time. These open burners run on 28,000 BTU for superior performance. The top is 24-1/4” wide with four detachable cast iron grates, giving even cooking to your food. The rear end has the capacity to withhold a stock pot which has a diameter of 14”. This oven burner comes in a U-shape which allows heat to get distributed evenly through the entire cavity. These burners have a single piece cast iron and do not get clogged, making them durable and reliable for your commercial kitchen. With a stainless steel front and side, this appliance will stay loyal to you for years to come. The shelf is removable, making it easy for you to clean the appliance without much effort.

Under these burners, there is a detachable crumb drawer that collects any excess waste coming out of the food while it is cooking. 4 metal knobs with red stripe are present under the burner to regulate heating temperature of the individual burner. This allows you to cook 4 different dishes simultaneously. There are a lower, hinged valve panel and pressure regulator that is factory installed. The quadrant spring doors are heat resistant, easily operated by the ergonomic, chrome handle. The 6” adjustable legs have a stainless steel construction that allows easy portability around the kitchen.

The Southbend oven has an aluminized cabinet base for long-lasting performance. Thermostat temperature ranging between 175 to 550 degrees Fahrenheit. The interior part of this oven features a porcelain enamel. There are two rack guides that are permanently fixed. Each rack has an individual oven for baking two dishes at once. Interior of this oven measures 19-1/2" W x 26-1/2" D x 14" H.

12” x 12” cast iron grates fitted with non-clogging burners. It also features a drip tray to collect excess oil and grease from food to prevent messes. It also has a flame failure safety device. This commercial appliance has a 3/4" gas connection for smooth operations.

ADDITIONAL INFORMATION

Main Features Include:

• Southbend model S24E Burner and Oven has a stainless steel construction with a high shelf
• This equipment features a 24-1/4" open top comprising of 4 non-clogging burners
• The burner has a detachable crumb drawer for collecting excessive waste
• You can control the temperature of each burner with a metal knob with red stripe
• There are quadrant spring doors along with an ergonomic chrome handle
• The legs are 6" long and made with stainless steel for durability
• The thermostat temperature ranges between 175 to 550 degrees Fahrenheit
• there is a pressure regulator that is factory installed
• The oven has a U-shape burner
• There is a frame failure safety device installed in the oven
• There are 2 position rack guides along with a detachable rack
• Sides and top of the oven are installed with a heavy-duty rock wool and an oven baffle assembly
• The cabinet base has an aluminized construction
• The equipment is driven by 3/4" gas connection
• Oven has a complete porcelain enamel interior for strength and reliability
• Burner has a removable drip tray for collection of excess oil and grease

Specifications:

• Central Model#:692-003
• Weight:350 lbs.
• Width:24"
• Depth:34"
• Height:591⁄2"
• BTU:28,000 | 24,000
• Burners:4
• Ovens:Space Saver
• Size:24"W
• Type:Gas
• Yield:3⁄4" rear gas connection
