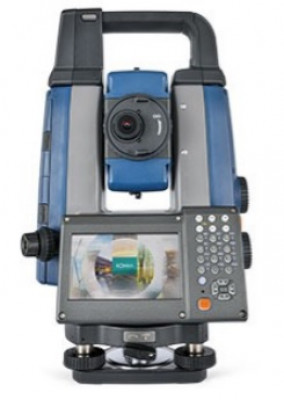

Sokkia iX-600 Robotic Total Station - with data collector

Product Specifications

BRAND	Sokkia
MODEL	iX-600

DESCRIPTION

Built for job site mobility, the flagship iX Series ultrasonic robotic total station enables accurate and productive workflows for highly demanding survey and construction applications. Precisely lay out or survey more points in less time and improve quality and consistency. Easy-to-use digital processes with repeatably accurate results mean less rework and better quality control. iX is one professional tool that does it all for layout, survey, and machine guidance.

ADDITIONAL INFORMATION

Model iX-1000 iX-600

Motor Ultrasonic (USM)
UltraTrac range 360° Prism ATP1/ATP1S: 600m (1968ft)
RC range Up to 600m (1968ft)
Dual-axis compensator (Tilt) ±6'

Data Management

Field Software MAGNET Field/GeoPro/3rd parties
Data Storage Internal: 1GB
USB: Up to 32GB
Interface RS-232C, USB 2.0 (Type A and mini B)
LongLink™ Yes. Up to 600m
WiFi IEEE 802.11 b/g/n

Hardware

Guide Light
Green LED (524nm) and Red LED (626nm)
Operating range – 1.3 to 150m (4.3 to 490ft)
Ingress protection – IP65 (IEC 60529:2001)
Operating temperature – -20 to +50°C (-4 to +122°F)
Dimensions – 212(W) x 172(D) x 355(H)mm 8.32" x 6.77" x 13.97"
Weight with battry & tribrach – Approx. 5.8kg (12.8lb)(with RC handle)
Laser plummet – Optional

Power

Power source – BDC72 Li-ion (5986 mAh)
Operating time (20°C) – ~ 4 hours

Model iX-1200 iX-600

Accuracy 2", 3", 5" – (0.6, 1.0, 1.5) mgon
Prism-2 EDM Range – 4000m (13123ft)
Prism EDM Accuracy – 2mm (0.0065 ft) + 2ppm
Non-Prism Range – Up to 600m (1968ft)
Non-Prism Accuracy – 2mm (0.0065 ft) + 2ppm
UltraTrac Range Prism-2 – Up to 800m (2624ft)
Turning Speed – 85°/sec
Tracking Speed – 15°/sec
Precise positioning with single-person operation
High-speed advanced ultrasonic motors
Easy-to-use with MAGNET or GeoPro software
Seamless integration into BIM workflows
Available in iX-1200 and iX-600 models with multiple accuracy levels
Three-year instrument and five-year motor warranty
Ultra-rugged IP65 dust and water resistance
