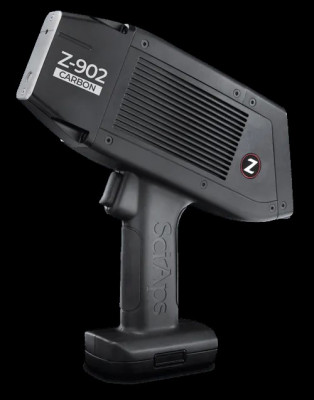

The Z-902 + features an all-new ergonomic design, a 0.5 lb. weight reduction down to about 3.5 lbs. (1.6 kg), improved heat dissipation, and completely updated software and processing electronics. Can use on-board argon purge for high precision analysis or QuickSort for rapid material sorting or grade identification with air-burn. Depending on the element, the LIBS signal is 2x-10x higher when operating in argon purge versus air-burn.
The analyzer uses two spectrometers to extend the wavelength range to 190 – 620 nm. The instrument is factory calibrated for a suite of 15-20 elements, depending on application. Or operators may use the accompanying Profile Builder software package to customize to specific elements, their own calibration standards, and spectral processing. The Z-902 + can be set up to measure the emissions of any element. Common factory-calibrated Z-902 + applications include alloy and aluminum.
ADDITIONAL INFORMATION
LIBS Sensor - Advanced spectrometer design for high resolution and wide range.
Internal-Camera - Precise targeting of analysis location
Macro-Camera - Photo documentation of samples, reading barcodes and QR codes
Report Generation - Full-featured, with available cloud data management and reporting
Narrow Snout - Tapered for welds or difficult-to-acces test locations
Laser Safety Sensor - Patented sample sensor allows Class 1 operation, subject to LSO approval
Intuitive Android - Android operating system, with app based software
High Resolution Display - Rear-facing display for easy viewing
Rugged Metal Body - Maximum durability and minimal service costs.
