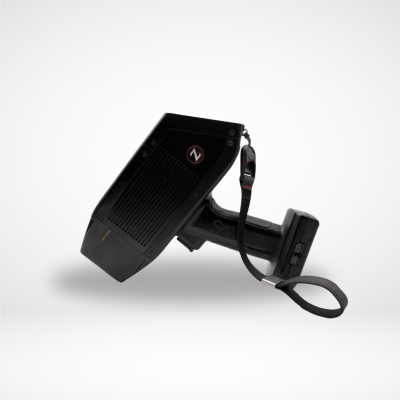

SciAps X-550 Pb Analyzer
X-550 Pb employs an X-ray tube that uses an electric current under high voltage to produce X-rays. The latest X-ray tube and detector technology deliver the fastest and most accurate lead paint results. Read the HUD PCS.
X-ray eliminates radioactive isotopes. No isotope replacement costs, isotope disposal costs, or regulatory and financial burden for owning and tracking radioactive materials.
The X-550 Pb complements existing applications. Select a rhodium X-ray tube anode or gold X-ray tube anode, depending on whether you also want to perform environmental testing for EPA Priority Pollutant and RCRA metals, or alloy or mining materials analysis. Optional apps include Lead in Soil, Alloy, Geochem (Mining), Empirical, Environmental Metals. Coming soon: Lead in dust wipes and air filters (NIOSH 7702). Read the Specifications.
ADDITIONAL INFORMATION
Weight
2.98 lbs. with battery
Excitation Source
5 W X-ray tube. Typical: , 40 kV, 200 uA Rh or Au anode. Anode choice depends on what other apps users may want to add.
Calibration
Linear or quadratic lead calibration with absorption and depth corrections.
Dimensions
8.5″ x 9.5″ x 2.4″
Detector
20 mm2 silicon drift detector (active area), 140 eV resolution FWHM at 5.95 Mn K-alpha line.
Calibration Check
External 316 stainless check standard for calibration verification and energy-scale validation. NIST 1.04 mg/cm2 lead paint standard on wooden substrate block for PCS calibration check standard, with other lead levels available for alternative action levels.
Power
On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power, hot-swap capability (60 s max swap time).
X-Ray Filtering
Standard 1 position filter, upgradeable to 5 positions depending on additional apps.
Analytical Range
Pb standard. May be calibrated to report up to 32 elements with upgrades.
Display
2.7-inch color capacitive touchscreen — 400 MHz Qualcomm Adreno 306 2D/3D graphics accelerator.
Processing Electronics and Host Processing
1.2 GHz quad ARM Cortex A53 64/32-bit; RAM: 2 GB LP-DDR3, Storage: 16 GB eMMC (storage).
Security
Password protected usage (user level) and internal settings (admin).
Regulatory
CE, RoHS, USFDA registered, Canada RED Act.
Environmental Temp. Range
10 F to 130 F at 25% duty cycle.
Comms/ Data Transfer
Wi-Fi, Bluetooth, USB connectivity to most devices, including SciAps Profile Builder PC software.
