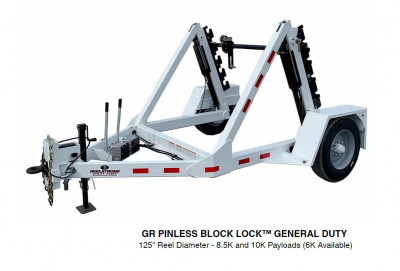

CAPACITIES 11,050 lbs. GVWR @ 15% Tongue Weight 2,200 lbs. Approx. Curb Weight 8,500 lbs. Approx. Payload Reel Diameter: 125” Max Reel Width: 64” Max Reel Bar Diameter: 2.50” Solid w/ Centering Collars Dimensions: 141.75”L x 102”W
AXLES 10K lbs. Axle
WHEELS & TIRES (2) 17.5 x 6.75 HC / 8 on 6.5 BC w/ 0.19 Inset (2) 215/75R17.5 LR-H Tires
BRAKES 12.25” x 3.38” Electric w/ Safety Breakaway Kit
STANDARD TRAILER BODY Heavy Duty 6” X 4” X ¼” Frame 6-Position Adjustable Hitch ⅜” X 36” GR70 Yellow Zinc Safety Chains with Hooks 8,000 lbs. Static Front Jack
WIRING DOT / ICC Approved LED Lights and Conspicuity Reflective Tape FMVSS / CMVSS Standard 108 LED Lighting Sealed Beam Rubber Mounted Stop, Turn, Tail and Marker Lights 100% Sealed Heat-Shrinked Wiring Connections w/ Full Loom Breakaway Kit with Absorbed Glass Mat (AGM) Battery
STANDARD FEATURES BLOCK LOCK™ Technology Provides Industry Leading Safety, Ease of Use, Low Maintenance, and Durability. Auto-locking Swing Out Reel Bar Retainer w/ Secondary Cylinder Lock Oil Bath Hubs
PAINT/FINISH I.M.P.A.C.T Intense Metal pH Acid Cleaning Technology Hydrofluoric, Sulfuric, Phosphoric ACID Blend Cleaning Preparation (Re-used sandblasting material can impregnate metals with oil) Seams Caulked Rust Preventative 2-Part Epoxy Primer Standard Color: White
