RB40 Inverted Biological Phase HD Digital

Product Specifications

BRAND	Fein Optic
MODEL	RB40

DESCRIPTION

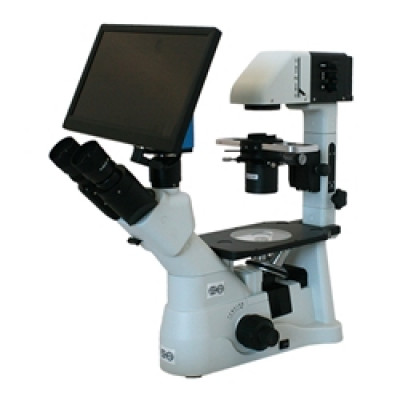

The Fein Optic high definition digital inverted phase contrast biological microscope provides an infinity corrected optical system with high quality optics. This Inverted microscope includes the following:

Objective Lenses: Plan Phase contrast 10x (WD = 7.94mm) and Plan Phase Contrast 20x (WD = 7.66mm) mounted in quintuple nosepiece. Optional Plan Phase 40x available below.
Eyepieces: 45° inclined gemel trinocular head with erect image. Beam splitter provides 100:0 or 0:100. Interpupillary distance adjustment from 54mm - 75mm. Dual diopters +/-5. High eyepoint plan 10x, FN22 eyepieces. Eyepieces have reticle retaining ring to hold 26mm diameter reticle. Includes c-mount adapter.
Total Magnification: 100x, 200x.
Specimen Stage: Fixed stage 250mm x 160mm. Travel range of 120mm x 78mm. Attachable mechanical stage available below.
Focusing: Ergonomically low-positioned, coaxial, coarse and fine focus knobs with adjustable tension control. Range of travel is 9mm total. Rotations of fine focus is 0.002mm per revolution.
Illumination: Koehler 6v, 30w halogen lamp with alterable field diaphragm. Bulb is pre-centered and intensity adjustable.
Light Focusing: NA 0.3 long working distance condenser, WD 72mm, bracket can be removed from optical path. Includes phase centering telescope. Phase slider with open (brightfield), Ph1 and Ph2 positions. Green Interference Filter.
Body: Automatic voltage sensing power supply 110v~240v, removable power cord. Includes blue filter and dust cover.
HD Camera: 1080P HD camera with direct output to HDMI HD monitor. Sensor is 1/2.8" CMOS Sony IMX236(C). Pixels 2.8x2.8µm. 60 frames per second at 1920x1080. Binning 1x1. 2mp image capture, software, power adapter 100~240V, HDMI cable, USB mouse. Included software can be used to capture images and make measurements on a PC (will not work on MAC).
LCD HD Monitor: 12" LCD HDMI monitor, true 1080P with LED backlight. Monitor mounts directly to the HD camera. Includes 110~240V power cord and HDMI cable.
Dimensions: 9" W x 28" D x 21" H
Warranty: 5 Years.
