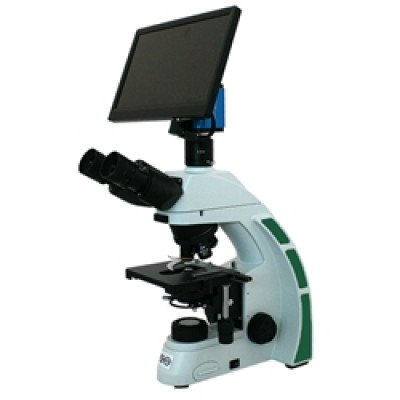

RB30HD High Definition Digital Lab

Product Specifications

BRAND	Fein Optic
MODEL	RB30-HD

DESCRIPTION

Objective Lenses: Reversed quintuple objective turret holds the included DIN Infinity Corrected Optical System (ICOS) Plan Achromat Objectives.

Plan Achromat 4x Objective, NA 0.10, WD 11.9mm
Plan Achromat 10x Objective, NA 0.25, WD 12.1mm
Plan Achromat 40x Objective, NA 0.65, WD 0.36mm
Plan Achromat 100x Objective, NA 1.25, WD 0.18mm, Oil Immersion

Viewing Head: Trinocular gemel head, with 30° eyetubes. Interpupillary adjustment from 50-75mm.
Eyepieces: PL-WF 10x Widefield, plan eyepieces, FN20. Dual diopter with +/-5 adjustment. Accepts 26mm diameter reticle.
Total Magnification: 40x, 100x, 400x and 1000x.
Specimen Stage: 150x140mm mechanical stage with 76mm x 50mm movement range. Precision 0.1mm.
Illumination: High intensity 3W LED transmitted Koehler light system provides a bright and uniform field for each magnification. Voltage 100~240V.
Light Focusing: NA 1.25 Koehler illuminator condenser with slot for darkfield slider (darkfield slider sold separate).
Focusing: Coaxial coarse and fine focusing. Coarse focusing is 30mm with tightness adjustment and rack stop. Fine adjustment of 0.002mm.
HD Camera: Includes c-mount adapter and 1080p HD camera with direct output to HDMI HD monitor. Sensor is 1/2.8" CMOS Sony IMX236(C). Pixels 2.8x2.8µm. 60 frames per second at 1920x1080. Binning 1x1. 2mp image capture, software, power adapter 100~240V power cord and HDMI cable. Software can be used to capture images and make measurements on a PC (will not work on MAC).
LCD HD Monitor: 12" LCD HDMI LED backlit monitor, true 1080P. Monitor mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
Size & Weight: 7.8" (199mm) W x 11.6" (294mm) D x 17.9" (454mm) H, 22 lbs.
Warranty: 5 Years on microscope, 1 year on camera and monitor.
