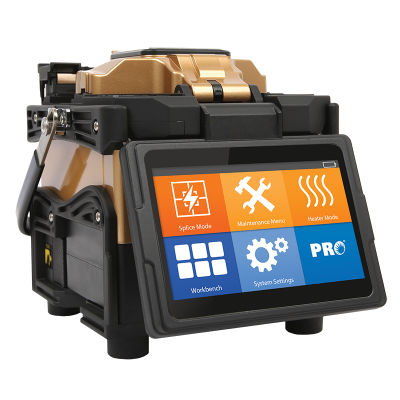

Precision Rated Optics OFS-947R Ribbon Fusion Splicer

Product Specifications

BRAND	Precision Rated Optics
MODEL	OFS-947R

DESCRIPTION

The OFS-947R Ribbon Fusion Splicer is equipped with a fully motorized clamp system and is the most robust and advanced ribbon splicer available. Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (zoom in & out) to the world’s highest magnification of 250x for ribbon splicer. The OFS-947R provides maximum work efficiency through its fast splicing & heating time, ultra-high battery capacity of 220 splice / heat cycles, and universal holder both for 250μm & 900μm single fiber. The OFS-947R ensures the most reliable work experience to our valuable customers.
Features
• Motorized Clamp Alignment System
• Ultra-High Capacity Battery
• 5″ Color LCD Touchscreen
• Universal Single Fiber Holder
• Dust-proof, shock-proof and waterproof

Specifications of the OFS-947R Ribbon Fusion Splicer
Applicable Fiber: SMF(G.6521657), MMF(G.651), DSF(G.653), NZDSF(G.655)
Fiber Count: Single to 12 Ribbon Fiber
Cladding Diameter Single: 125 / 160 to 3mm by Fiber Holder System Ribbon : 125 / Ribbon Fiber Thickness 0.25 to 0.4mm
Cleaved Length: 13mm
Splice Mode/Heating Mode: 100 Splice Modes | 32 Heating Modes
Typical Splice Loss: (SM)0.03dB, (MM)0.02dB, (DS)0.08dB and (NZDS)0.08dB Measured by Cut-back Method Relevant ITU-T and IEC Standards
Splice Time Typical: 15 Sec
Tube Heating Time Typical: 20 Sec
Splice Result: Last 2000 Splices
Viewing Method: 2 Axis CMOS Camera with 4.3” Color LCD
Magnification: 33x and 60x Magnification
Protective Sleeve: 60mm,40mm
Splice/Heating: pre Battery Typical 120 Cycles with LBT-50
Electrode Life: 1500 Splices
Display: 5” Color Super Clear Touch Screen with Temper Proof Glass
Optical System: No Mirror
Size/Weight (WxDxH): 4.88” x 4.84” x 5.43in / 4.18lb (124 x 123 x 138mm / 1.90kg)
Operating Environment: Elevation 0-5,000 Meters, Temp: 14~140°F (-10 ~ 60°C), 0-95% Relative Humidity
Storage Conditions: Temp: -40~176°F (-40~80°C), 0-95% Relative Humidity, Battery: -4~86°F ( -20-30°C)
Pull Test: 1.96 to 2.25N (Standard), 4,4N (Optional)
Terminals: USB 2.0 (Mini- 8 Type) Connector for PC Communication
Other Features: Remote PC Software Upgrade / Data Management / Maintenance

OFS-947R Standard Package Includes: Splicer, Power Cord, Car Charger, SOC Heater Block, Shoulder Strap, Hot Jacket Stripper, Cleaver Softcase, USB Cable, Cooling Tray, SOC Holder, User Manual CD, AC Adapter for Stripper, Cleaver, AC Adapter, Spare Electrode, 2 Battery Packs, Hand Carrying Case.
