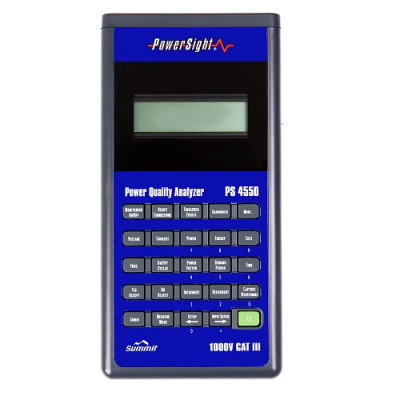

The PowerSight PS4550 Power Quality Analyzer is a versatile, easy-to-use power quality analyzer that is ideal for comprehensive power quality studies, energy audits, load studies, harmonic analysis, and more. The PS4550 couples small size with sophisticated triggering and event capture to answer your power quality questions.
Combined with our PowerSight Manager software (PSM-A) and our extensive collection of measurement accessories, the PS4550 forms the PowerSight “Start-To-End Monitoring Solution,” providing the Most Efficient and Error Free Solution for doing Power Studies.
ADDITIONAL INFORMATION
Features:
Measures, logs, and reports:
RMS Volts
RMS Amps
Sags, Swells (surges) and inrush
Transients, impulses
Watts, VA , VAR , Power Factor, Hz
THD, Live / scope waveform views
Real time meters
Phasors
Harmonic Spectrum
Most Efficient and Error Free Solution for Power Studies:
TestPlan Manager™ - to create a test plan, manage resources, and track status
Data Setup Wizard™ - to insure you get the measurements that you need
SureStart Expert System™ - to verify that connections and settings are correct, prior to starting
TestPlan Manager™ - to integrate the plan into the meter and to retrieve the data according to your needs, without error
ReportWriter Wizard™ - to quickly / accurately create your final report
Monitor just about any power system or load in the world:
3 phase delta/wye, 4 wire delta, open/grounded delta, 2CT/2PT – 3CT/2PT – 3CT/3PT metering circuits, split-phase, single phase, multiple single phase, and of course DC.
Select any of 68 different measurement types for regular recording of Voltage (V), Current (A), Power (KW), Apparent Power (KVA), True Power Factor (PF), Frequency (Hz), and THD.
Summaries of the average, maximum, and minimum of each value, as well as the present values can be viewed on the analyzer’s display at any time.
All measurements and the initial automatic capture of waveforms can be viewed and analyzed in our PSM-A software.
