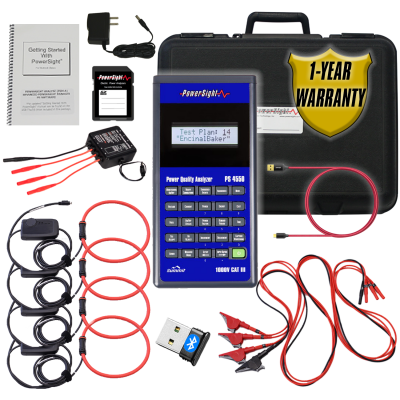

The PK4564-PRO has all recommended equipment for a power quality analysis study, plus accessories that most professionals want in their toolkit for redundancy and efficiency for powering the analyzer, for communicating, and for data storage.
Features
Measure and log all common power measurement types: V, A, W, VA, VAR, kWH, PF, Hz, THD, etc.
Capture power quality events in multiple ways to view and record swells, dips (sags), inrush, high speed transients, etc of both voltage and current. All inputs are sampled continuously and simultaneously so nothing is missed.
Wide range of fundamental frequency modes for 50Hz, 60Hz, 400Hz, variable frequency systems, and DC to cover all your needs.
Able to evaluate all power systems: 3 phase Wye, 3 phase Delta (including 4-wire, open, and grounded), split-phase, single phase, quad single phase (using same source) , 3PT/3CT, 3PT/2CT, 2 current power, DC, quad DC (using same source).
The included Advanced PowerSight Manager software (PSM-A) improves your efficiency and eliminates sources of error at each stage of the monitoring process:
- TestPlan Manager™ to organize and automate your tests and the data retrieval
- SureStart™ expert system to advise if the connections or settings seem correct or not, prior to starting
- DataSetup Wizard™ to set your triggering and logging parameters according to your application
- ReportWriter Wizard™ to automatically generate error-free reports.
Benefit from the safety rating of 1000V CAT IIII, 600V CAT IV and Bluetooth Wireless Communications (remote viewing/control of the display without the burden of wearing PPE).
The Extended Memory Option (MEM2) comes installed in the PS500. Paired with the SD Memory Card, the analyzer has virtually unlimited logging capacity. The SD Memory Card also provides redundant storage to reduce the risk of data loss.
Get communications redundancy with the Bluetooth USB Adapter and USB Communications Cable. Bluetooth capability comes standard on all PowerSight analyzers, but the Bluetooth USB Adapter provides a more reliable wireless connection to the PC. The USB Communications Cable provides a fast and easy wired option for connecting your PS4550 to a PC. Just don’t use the cable to connect the analyzer during a live test!
Monitor power for long periods of time with the Mini Line-to-DC Converter (LDCm). This accessory allows the meter to power itself off the voltage being monitored. So, as long as the power to the equipment/panel is on, the analyzer can stay on and log data. The LDCm’s small form factor makes it easy to fit in tight spaces, so it can stay out of view and harm’s way.
Extend the measurement range with the use of our industry-widest array of accessories and options:
- measure down to 0.002 amps AC (HA-GFD)
- measure from 5 to 2000 amps DC (DC600/DC2000)
- direct connect and measure to 15kV (5KVP/15KVP)
- measure power-line noise to 100kHz (FAO)
First rate technical support, direct from the manufacturer to you!
