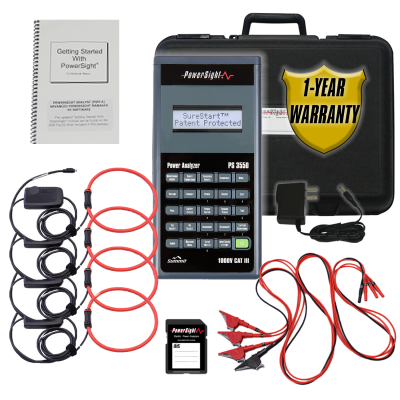

The PowerSight PK3564 Power Analysis System has the essentials for comprehensive power studies, energy audits, load studies, and more. Wide-range flexible current probes allow you to get into tight and confined spaces, wrap around large conductors, and measure almost any AC circuit that comes your way. your way. This system contains the basics for almost any power analysis study in the world.
Features
Measure and log all common power measurement types: V, A, W, VA, VAR, kWH, PF, Hz, THD, etc.
Wide range of operating modes:
- frequency modes for 50Hz, 60Hz, 400Hz, variable frequency systems, and DC to cover all your needs.
- power modes for Positive Power Only (to get the correct answers even if a current probe is backwards), Negative Power Allowed (for regenerative circuits), 2 Current Power (for special distribution and metering systems), quad-power (for multiple parallel single-phase loads)
- Programmed start and/or stop for precise monitoring sessions, Stop When Full, Never Stop
Able to evaluate all power systems: 3 phase Wye, 3 phase Delta (including 4-wire, open, and grounded), split-phase, single phase, quad single phase (using same source) , 3PT/3CT, 3PT/2CT, 2 current power, DC, quad DC (using same source).
The included Advanced PowerSight Manager software (PSM-A) improves your efficiency and eliminates sources of error at each stage of the monitoring process:
- TestPlan Manager™ to organize and automate your tests and the data retrieval
- SureStart™ expert system to advise if the connections or settings seem correct or not, prior to starting
- DataSetup Wizard™ to set your triggering and logging parameters according to your application
- ReportWriter Wizard™ to automatically generate error-free reports.
Benefit from the safety rating of 1000V CAT IIII, 600V CAT IV and Bluetooth Wireless Communications (remote viewing/control of the display without the burden of wearing PPE).
SD Memory Card provides redundant storage and essentially unlimited logging capacity.
Extend the measurement range with the use of our industry-widest array of accessories and options:
- measure down to 0.002 amps AC (HA-GFD)
- measure from 5 to 2000 amps DC (DC600/DC2000)
- direct connect and measure to 15kV (5KVP/15KVP)
First rate technical support, direct from the manufacturer to you!
