Optix WRX5000-SM2 OTDR from $92.82/mo

OptixAmerica WRX5000-SM2 Advanced OTDR SM+MM

OptixAmerica WRX5000-SM2 Advanced OTDR SM+MM
Product Specifications
BRAND  Optix
MODEL  WRX5000-SM2
DESCRIPTION

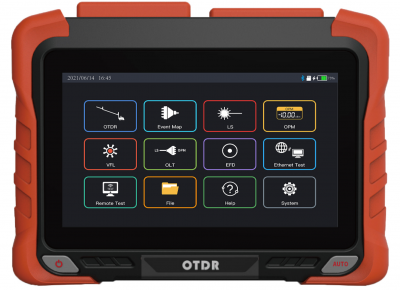

The WRX5000-SM2 single mode + multi mode optical time domain reflectometer (OTDR) is the new generation of intelligent tester for the detection of fiber communications systems and optical network construction with outstanding performance and is specially designed for long haul application. This specially designed unit offers a seven inch capacitive touch screen which integrates nine modules with excellent accuracy of short fiber test and automatic test and is equipped with a rich Ethernet test (Ping/PPOE, etc) and supports APP control. The WRX5000 series is used to measure the length, loss, and connection quality of optical fiber used in engineering construction, line maintenance & testing, emergency repair, and the development and production of optical fiber cables.
ADDITIONAL INFORMATION
FEATURES
  • Singlemode + Multimode multifunctional OTDR
  • 7” capacitive touch screen zoom in and out curve
  • Wavelength 850nm, 1300nm, 1310nm, 1550nm
  • Maximum dynamic range 26dB/28dB/37dB/35dB
  • 1.0 m Event Dead Zone
  • 6m Attenuation Blind zone
  • Supports SM/MM/SM+MM test
  • Online detection, effective APD active protection
  • PON network online test
  • Supports fast charging protocol and power bank
  • Ethernet test, supporting Ethernet Remote Test
  • Integrates OTDR, VFL, LS, OPM, Event Map, End Detection, Optical Loss Test, Ethernet Test, Remote Test, File Management
  • Small and light
  • Detection of online test
  • Caution function
  • Report printing
  • Files batch processing
  • Multiwavelength simultaneous test
  • Automatic analysis of results
  • Bluetooth

GENERAL PARAMETERS
  • Display  7.3 inch color LCD plus touch screen resolution 800x480
  • Power Supply  Type-C adapter: Input: 100V~240V, 50/60 Hz, Output 5V/3A, 9V/2A, 12V/1.5A Lithium battery: 3.7V, 10400mAh
  • Working Temperature   -10℃ ~ +50℃
  • Storage Temperature   -40℃ ~ +70℃
  • Relative Humidity   0~95%, Non Condensing
  • Weight   1.2kg
  • Size   215mmx160mmx50mm
  • Functions of Host: OTDR, VFL, OPM, Event Map, End Detection, Optical Loss Test, Ethernet Test, Remote Test, File Management

INCLUDED IN PACKAGE
  • AC/DC Power Adapter
  • U Disk (containing analysis software)
  • Data line
  • OTDR SC Adapter
  • OPM SC Adapter
  • Users Manual
  • Calibration certificate
  • Certificate/Warranty Card
  • Clean cotton piece
  • Special backpack for instrument
