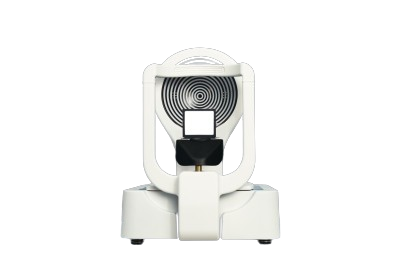

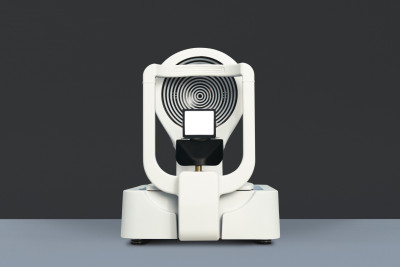

Onyx Corneal Topographer - Dry Eye Diagnostic, Fully Automated

PRODUCT DESCRIPTION

The Onyx is an advanced corneal topographer designed for detailed analysis of the eye’s anterior surface and ocular conditions. It captures high-resolution corneal and tear film data to support diagnostics, screening, and clinical decision-making in ophthalmology and optometry. In addition, it can measure for Dry eye - fully automated. Key Features & Capabilities

• High-precision imaging: Uses a 24-ring Placido system with an 8-megapixel camera for detailed corneal surface capture and analysis.
• Automatic operation: Automatic eye detection, focus, and acquisition streamline the examination process.
• Comprehensive maps and analyses: Includes topography, axial, tangential, refraction, differential and elevation maps, along with pupillometry and white-to-white measurements.
• Screening & simulation tools: Supports keratoconus screening and contact lens fitting simulation.
• Dry eye and tear film evaluation: Offers NIBUT (non-invasive tear breakup time), meibography (including 3D), tear meniscus assessment, blink quality metrics, and ocular redness classification.
• Software and connectivity: Outputs via USB 3.0; device integrates with SBM software and can connect to an optional mini PC.

Physical & Technical Specs

• Dimensions: ~40 cm × 52–55 cm × 47 cm
• Weight: ~12 kg
• Electrical: 100–240 V supply, compliant with IEC 60601-1-2 standards.

Applications
Used in clinical settings to assess corneal shape and health, diagnose disorders like keratoconus, evaluate dry eye disease and tear film stability, and assist with contact lens fitting and pre-surgical planning.
