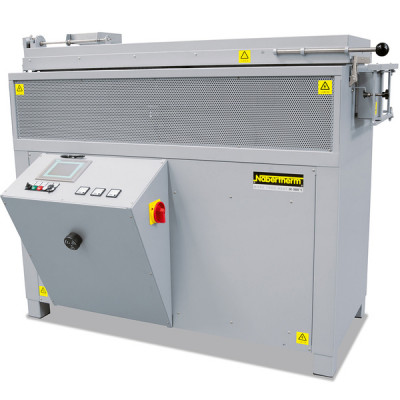

Nabertherm Gradient or Lab Strand Annealing Furnace, GR Model
Nabertherm Gradient or Lab Strand Annealing Furnace, GR Model
Product Specifications
BRAND
Nabertherm
MODEL
GR 1300/13
DESCRIPTION
The furnace chamber of the gradient furnace GR 1300/13 is divided in six control zones of equal length
Tmax 1300 °C
Heated length 1300 mm
Heating elements on support tubes providing for free heat radiation in the kiln chamber
Charging from the top or through the right side door
Gas damper suspension of the lid
6-zone control
Separate control of heating zones (each 160 mm long)
Temperature gradient of 400 °C over the entire length of the kiln chamber, each zone can individually be controlled
Fiber separators dividing the chamber in six equally sized chambers
The gradient furnace is usually charged from the side through the parallel swivel door. A maximum temperature gradient of 400 °C can then be stabilized over the heated length of 1300 mm. On request, the furnace also is designed as a lab strand annealing furnace with a second door on the opposite side. If the included fiber separator are used charging is carried-out from the top.
The temperature in each of the six heating zones is separately controlled.
