Motic Instruments BA310MET-T Microscope from $92.00/mo

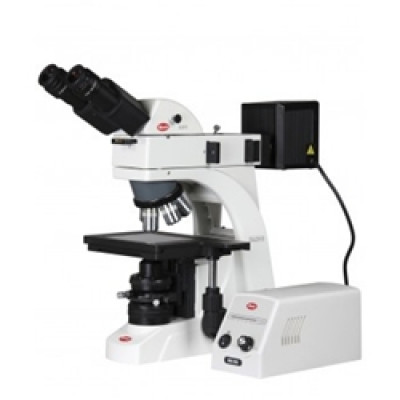

Motic BA310MET-T Metallurgical Reflected and Transmitted Light

Motic BA310MET-T Metallurgical Reflected and Transmitted Light
Product Specifications
BRAND  Motic Instruments
MODEL  BA310MET-T
DESCRIPTION

Objective Lenses: DIN Color Corrected Infinity Optical System (CCIS) Plan Achromat brightfield metallurgical objectives 5x, 10x, 20x and 50x mounted in smooth-operating, ball bearing mounted, reversed quintuple nosepiece. 100x objective is available.
Viewing Head: Siedentopf-type binocular head or trinocular head for camera integration. Each head has the eyetubes inclined at 30° with dual diopters. The interpupillary distance is adjustable between 55mm - 75mm. The beamsplitter for the trinocular tube can be engaged for photo work with a light split of 100:0 or 80:20.
Eyepieces: N-WF10x / 20 Widefield eyepieces with dual diopters. Accepts 25mm diameter reticle. Eyepieces with FN22 are available.
Total Magnification: 50x, 100x, 200x and 500x.
Specimen Stage: Hard coated rectangular mechanical stage that offers consistent sample coaxial movement across the range. Your choice of the following stages:

3" x 2" stage with 75 x 50mm stroke and a stage area of 240mm x 140mm.
6" x 4" stage with 150 x 100mm stroke and a stage area of 300mm x 180mm.

Illumination: 12v/50w Epi Halogen illumination with external power supply. The Epi-illuminator carries a field diaphragm as well as an aperture diaphragm, both adjustable for optimal image quality without the effects of stray light and reflections. Koehler illumination quartz halogen 6v, 30w transmitted light with intensity control. A polarization set (polarizer / analyzer) is available as an option. Halogen bulb is exchangeable with a 3w LED. Universal power supply 100~240V.
Condenser: Achromatic NA 0.85. Collector lens assembly offers a secure, screw-on filter holder for any kind of filter.
Focusing: Brass gears. Coaxial movement, 25mm stroke, fine focus with 2um minimum increments. Torque adjustment for coarse focus, stage lock. Z-axis movement of 30mm. Maximum specimen thickness is 30mm.
Includes: 45mm blue filter, power cord, vinyl dust cover.
Size:508mm D x 198mm W x 465mm H.
Warranty: 5 Year Warranty.
