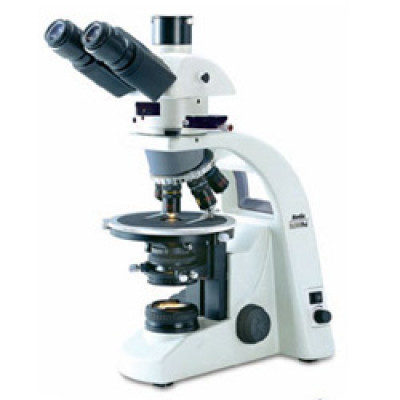

Motic BA310MET Metallurgical Reflected Light

Product Specifications

BRAND	Motic Instruments
MODEL	BA310MET

DESCRIPTION

he Motic BA310MET metallurgical reflected light microscope includes the following:

Objective Lenses: DIN Color Corrected Infinity Optical System (CCIS) LM Plan Achromat brightfield metallurgical objectives 5x, 10x, 20x and 50x mounted in smooth-operating, ball bearing mounted, reversed quintuple nosepiece. 100x objective is available.
Viewing Head: Siedentopf-type binocular head or trinocular head for camera integration. Each head has the eyetubes inclined at 30° with dual diopters. The interpupillary distance is adjustable between 55mm - 75mm. The beamsplitter for the trinocular tube can be engaged for photo work with a light split of 100:0 or 80:20.
Eyepieces: N-WF10x / 20 Widefield eyepieces with dual diopters. Accepts 25mm diameter reticle. Widefield 10x Eyepiece with FN22 is available.
Total Magnification: 50x, 100x, 200x and 500x.
Specimen Stage: Hard coated rectangular mechanical stage that offers consistent sample coaxial movement across 76x50mm range with a stage area of 180x140mm.
Illumination: 12v/50w Epi Halogen illumination with external power supply. The Epi-illuminator carries a field diaphragm as well as an aperture diaphragm, both adjustable for optimal image quality without the effects of stray light and reflections. A polarization set (polarizer / analyzer) is available as an option. Halogen bulb is exchangeable with a 3w LED.
Focusing: Brass gears. Coaxial movement, 25mm stroke, fine focus with 2um minimum increments. Torque adjustment for coarse focus, stage lock. Maximum specimen thickness is 30mm.
Size:508mm D x 198mm W x 465mm H.
Warranty: 5 Year Warranty.
