Motic BA310 Laboratory HD Digital

Product Specifications

BRAND	Motic Instruments
MODEL	BA310 HD

DESCRIPTION

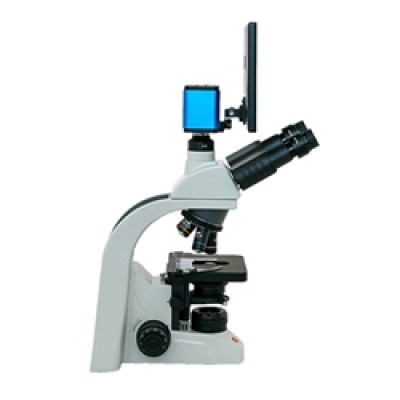

The Motic BA310 HD Digital Biological microscope for clinical, University or Institutional uses. Includes color corrected infinity optical system. The Motic BA310 HD digital microscope includes the following:Objective Lenses: Inward facing quintuple objective turret revolving nosepiece holds your choice of Color Corrected Infinity System (CCIS) EC Plan Achromat objectives or CCIS EC-H Plan Phase objectives.
Eyepieces: Siedentopf high eyepoint widefield 10x eyepieces, 20mm FOV. Accepts 25mm diameter reticle. 30° inclined binocular tubes with interpupillary distance adjustments from 55 mm to 75 mm. Independent diopter adjustments are on each eyepiece, rather than on the eyepiece tube. Trinocular port provides light distribution slider of 100% binocular or 100% photo tube, making it ideal for photo microscopy. Includes 0.5x c-mount adapter.
Total Magnification:

CCIS EC Plan Achromat objectives - 40x, 100x, 400xr, 1000xr oil immersion.
CCIS EC-H Plan Phase objectives - 100x, 200x, 400xr, 1000xr oil immersion. If Phase contrast is selected the condenser included is full phase contrast 5-position condenser and phase centering telescope.

Specimen Stage: Rectangular mechanical stage, 175mm x 140mm with a travel range of 76mm x 50mm. Low positioned coaxial control knobs make it easy to control stage movement. The stage is protected with a special hard coating to protect against abrasion and fungus growth.
Stand: T-shaped base and pyramid-designed frame provide superb stability and mechanical design to achieve ergonomic and fatigue-free operation as well as saving vital desk space in modern laboratories.
Focusing: Fine and coarse coaxial focusing. The Combination of a triangular steel rail with an adjustable torque control knob provides for easy control of the coarse focusing tension and total vertical movement of 25mm at 2 µm.
Condenser: Focusable Abbe N.A. 0.90 with iris diaphragm. The condenser is attached to the microscope using a dovetail mount and can be adjusted through a rack and pinion mechanism ensuring a durable and smooth range of adjustments. The condenser has a slot for the 3-position phase contrast slider, which can be easily added for quick phase contrast microscopy. When you order the phase contrast objectives you will receive a 5-position phase contrast condenser and a phase centering telescope.
Illumination: Your choice of either LED illumination or 6V / 30W quartz halogen illumination together with the field iris diaphragm provides an exact Koehler illumination. Includes built-in intensity control.
HD Camera: 1080p HD camera with direct output to HDMI HD monitor. Sensor is 1/2.8" CMOS Sony IMX236(C). Pixels 2.8x2.8µm. 60 frames per second at 1920x1080. Binning 1x1. 2mp image capture to SD card (included). USB capture control for Windows (will not work with MAC). Includes camera, software, power adapter 100~240V, HDMI cable, USB mouse.
LCD HD Monitor: 12" LCD HDMI monitor, true 1080P. LED backlight. Monitor mounts directly to HD camera. Includes 110~240V power cord and HDMI cable.
Anti-Fungus Treatment: All critical parts of the microscope such as the eyepieces, objectives and observation tube are anti-fungus treated to ensure image clarity and optical performance.
Size: 15.5" high.
Warranty: Five year warranty excluding electrical parts.
