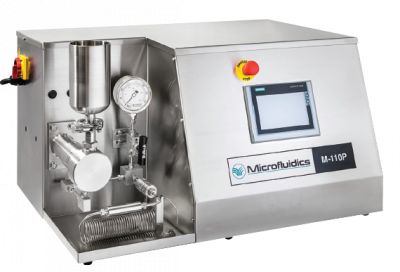

The Model M-110-P bench-top microfluidizer has been designed to reliably achieve continuous operating pressures up to 30,000 psi. This “plug and Play” instrument maximizes the energy-per-unit fluid volume which results in very uniform submicron particles. This second generation M-110P microfluidizer contains an on-board 2 hp electric-hydraulic drive that powers a single acting intensifier pump. Process pressures may be adjusted from 2,000-30,000 psi to produce the desired product results. As the reciprocating intensifier pump travels through its pressure stroke, the product is driven through the diamond interaction chamber. The fixed geometry micro channels accelerate the product stream to high velocities. The result is high-shear and impact forces giving the desired result. Upon exiting the interaction chamber, the product flows through an external cooling coil which regulates the product temperature. At this point, the product stream may be recirculated through the system for additional processing or sent to the next step in the overall process.
ADDITIONAL INFORMATION
Recommended uses for the M110-P include:
Cell disruption
Production of nano-dispersions and nano-emulsions
Microencapsulation in polymers, liposomes and oils Deagglomeration
Additional features include:
Ability to achieve processing pressures up to 30,000 psi
Produces product flow rate up to 125 mL/min
Powered by a standard 120 VAC/60Hz single phase electric motor
Fan cooled drive system
Fits in standard laboratory chemical hood CE compliant
