The Maxx Scientific hinged solid door top mount freezers delivers an ideal cold storage environment which meets or exceeds the AABB and CDC regulations for frozen medical applications like enzymes, sample medicine and vaccines. The unit comes with a 6’ (2m) NEMA cord set and includes a condensate evaporator, no drain connection needed, so it arrives as a “plug & play” appliance. The unit security is ensured by a door lock and key set and password protected digital control system. The basic design delivers years of trouble-free, reliable, cost- effective operation if properly maintained.
FEATURES
• Digital Temperature Display (can display C° or F°)
• Lockable, hinged solid stainless steel door(s)
• Capped remote communication access port (3/4” opening - 2nd port optional) • Optional integrated data recording instruments like data loggers, recorders or
wifi wireless transmitters or a remote communication system like an ethernet
hookup
• Programmable automatic defrost cycle for reliable continuous operation
• LED interior lighting
• Audible & visible alarms that indicate if power fails, a door is opened longer
than selected time period, stored product temperature approaches pre-selected
temperature, unit is in defrost cycle or fan is not operational
• 3 Plastic coated wire shelves per section
• 4 swivel casters standard (2 with brakes)
• Comes with manufacturer Q&A report including performance validation,
certifications, default settings and 24/7 technical support call-in phone
number
• Comes with silicone crystal desiccant pack for more efficient and consistent
humidity control and glycol bottle for temperature monitoring
TEMPERATURE
• Regulated temperature range: -10° to 10°F (-23° to -12°C)
• Default factory setting: -20°C (-4°F)
• Digitally controlled system maintains optimum temperature
• Solid state control system is password protected so the set point cannot be
changed inadvertently or by an unauthorized individual
• Forced air cooling maintains even temperature regulation within the
refrigerator (± 3°C)
CONSTRUCTION
· • Oversized, environmentally friendly R-404a refrigeration system maintains the ideal storage temperature even if accessed frequently
· • Exterior Material: Stainless Steel
· • Interior Material: Stainless Steel
· • Efficient, durable, easily replaced compression door gaskets tightly seal the
unit to assist in delivering outstanding temperature regulation and energy
efficiency
· • Comes with a NEMA 5-15 or L14-20R Cord Set
· • Comes with eco-friendly high R value urethane foam insulation
· • Certified to meet the applicable industrial standards for safe and sanitary
refrigerated or frozen product storage

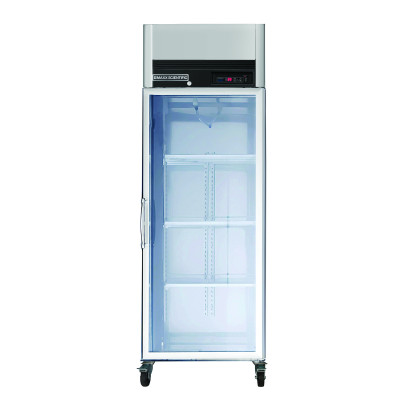

23 Cu Ft Single Door, Glass Door Freezer for Medical/Pharmacy/ Blood, Reagent and Vaccine Storage.
- Temperature Range is -23C to -12C. Factory Default is -20C.
- Capped Data Port
- Glycol Temperature Monitoring System
- Stainless Steel Interior and Exterior
- 360 4” Swivel Caster with Brakes
- Digital LED Control Panel
- Comes with Manufacturer Q&A Report Including Performance Evaluation Certifications
NEMA 5-15 115V/60HZ/1PH
