Martin MAC 101 | Rent, Finance, or Buy

Martin MAC 101

Martin MAC 101
Specifications
PRODUCT DESCRIPTION

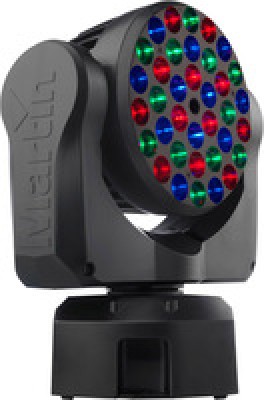

Martin Professional's MAC 101 is a small and light LED moving head wash light.  It features a tight, bright beam, rapid movement and calibrated colors.

Features:
  • Efficient LEDs with true color calibration
  • Variable CTC
  • 2200 lm output
  • 13.5° one-tenth peak angle
  • Smooth electronic dimming: 0 - 100%
  • Wide angle options
  • Electronic strobe with pulse and random effects
  • Martin's fastest moving head
  • High efficiency, low power consumption
  • Compact, low weight design (3.7 kg)
  • Power easily daisy-chained
  • Dimensions: 9.5" L (across yoke) x 9.5" W (acrossyoke) x 12" H (241 x 241 x 304 mm)
  • Weight: 8.2 lbs (3.7 kg)
  • Housing: High-impact flame-retardant thermoplastic
  • Protection rating: IP20
Dynamic Effects:
  • Electronic "color wheel" effect: 33 LEE-referencedcolors plus white, color wheel rotation effect, random color
  • Color mixing: RGB
  • Red: 0 - 100%
  • Green: 0 - 100%
  • Blue: 0 - 100%
  • Color temperature control: Variable 2500 - 10 000 K
  • Shutter effect: Electronic, with pulse and randomeffects
  • Electronic dimming: 0 - 100%, four dimming curveoptions
  • Pan: 540°
  • Tilt: 240°
  • Adjustable pan/tilt speed
Optics:
  • Light source: Cree XP-E high power emitters
  • Minimum LED lifetime: 50 000 hours (to >70% luminousoutput)*
    *Manufacturer´s figure obtained under manufacturer´s testconditions
Control and Programming:
  • Control options: 3 control modes - RGB raw, RGBcalibrated, Basic (RGB + CTC disabled)
  • Control resolution: 8-bit, with 16-bit control of pan& tilt
  • DMX channels: 8/12
  • Setting and addressing: Control panel with backlitgraphic display
  • Protocol: USITT DMX512/1990
  • Transceiver: RS-485
  • Fixture software update: Via DMX with Martin USB Duo DMX Interface
Installation:
  • Mounting points: One M12 threaded hole for riggingclamp
  • Orientation: Any
  • Minimum distance to combustible materials: 100 mm(3.9 in.) from head, no minimum distance from base
  • Minimum distance to illuminated surfaces: 200 mm (7.9 in.)
Connections:
  • AC power input: Neutrik PowerCon
  • AC power throughput: Neutrik PowerCon
  • DMX data in/out: 5-pin locking XLR
Electrical:
  • AC power: 100-240 V nominal, 50/60 Hz
  • Maximum total power consumption: 123 W
  • Power supply unit: Auto-ranging electronic switchmode
  • Main fuse: 5 AT (slow blow)
  • Standby power: <25 W
Thermal:
  • Cooling: Forced air (temperature-regulated, lownoise, user-definable levels)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)
  • Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.
Approvals:
  • EU safety: EN 60598-1, EN 60598-2-17, EN 62471
  • EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
  • US safety (pending): UL 1573
  • US EMC: FCC Part 15 Class A
  • Canadian safety (pending): CAN/CSA E60598-1, CAN/CSAE598-2-17
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: C-TICK N4241
Photometric Data:
  • Standard (Only blue LEDs on)
    • Efficacy: 5.7 lumens per watt
    • One-tenth peak angle: 11.5°
    • Total output: 320 lm
  • Standard (Only green LEDs on)
    • Efficacy: 23 lumens per watt
    • One-tenth peak angle: 12.5°
    • Total output: 1300 lm
  • Standard (All LEDs on)
    • Efficacy: 18.9 lumens per watt
    • One-tenth peak angle: 12.5°
    • Total output: 2300 lm
  • Standard (Only red LEDs on)
    • Efficacy: 23.4 lumens per watt
    • One-tenth peak angle: 13.5°
    • Total output: 790 lm
